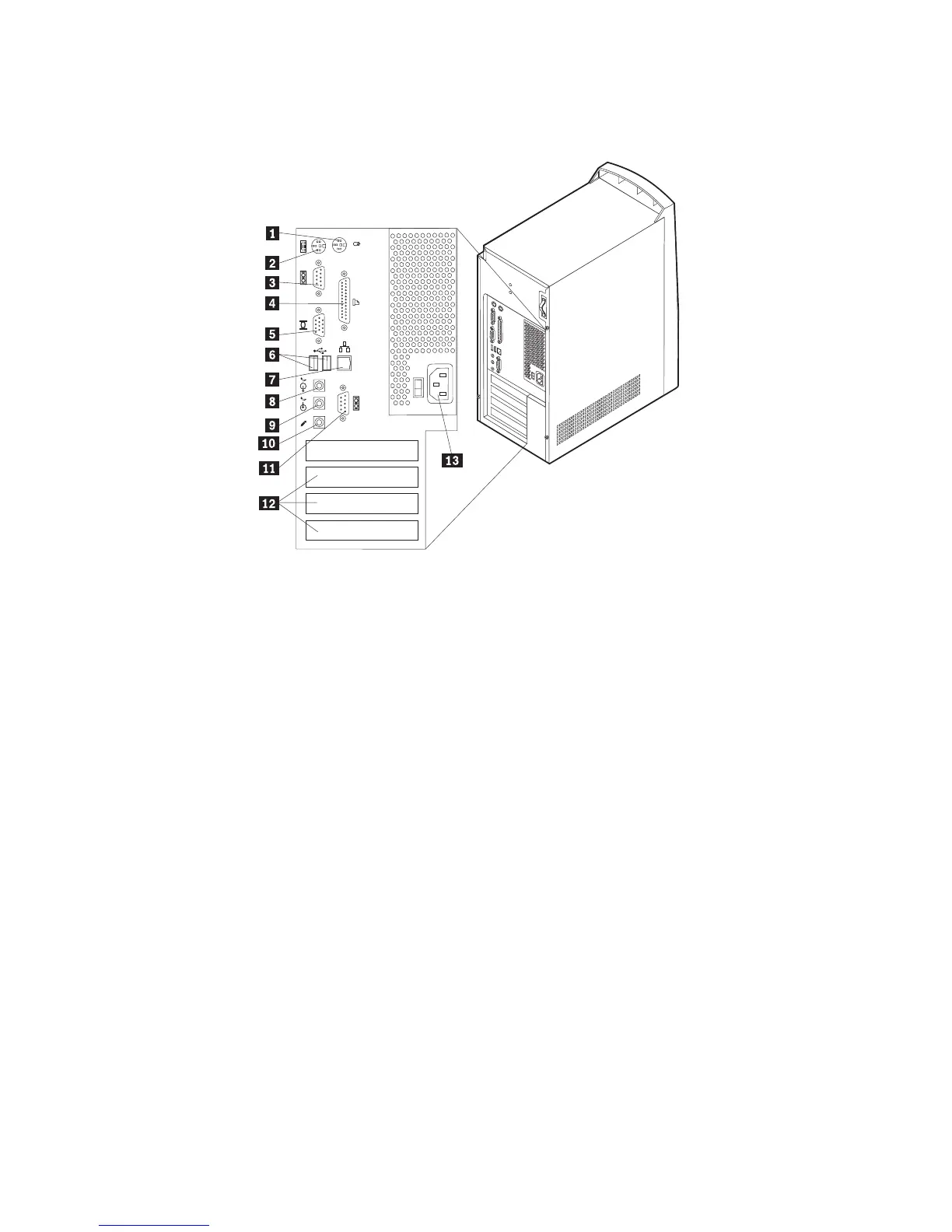

The following illustration shows the location of the connectors on the back of the
microtower model computer.
Note: The connectors on the rear of the computer have color-coded icons to help you
to determine where to connect the cables on your computer.
򍦠1򐂰Mouse connector 򍦠8򐂰Audio line out connector
򍦠2򐂰Keyboard connector 򍦠9򐂰Audio line in connector
򍦠3򐂰Serial connector 򍦠10򐂰Microphone connector
򍦠4򐂰Parallel connector 򍦠11򐂰Serial connector
򍦠5򐂰Monitor connector 򍦠12򐂰PCI slots
򍦠6򐂰USB connectors 򍦠13򐂰Power connector
򍦠7򐂰Ethernet connector
Connector Description
Mouse connector Used to attach a mouse, trackball, or other pointing device that
uses a PS/2 mouse connector.
Keyboard connector Used to attach a keyboard that uses a PS/2 keyboard connector.

IBM 6339 Specifications

General

Brand	IBM
Model	6339
Category	Desktop
Language	English
