server or console switch any cables that are connected to the console unit (keyboard-and-mouse,
video, and power cables).
3. Close the flat-panel display.
4. Remove the console unit from the rack:

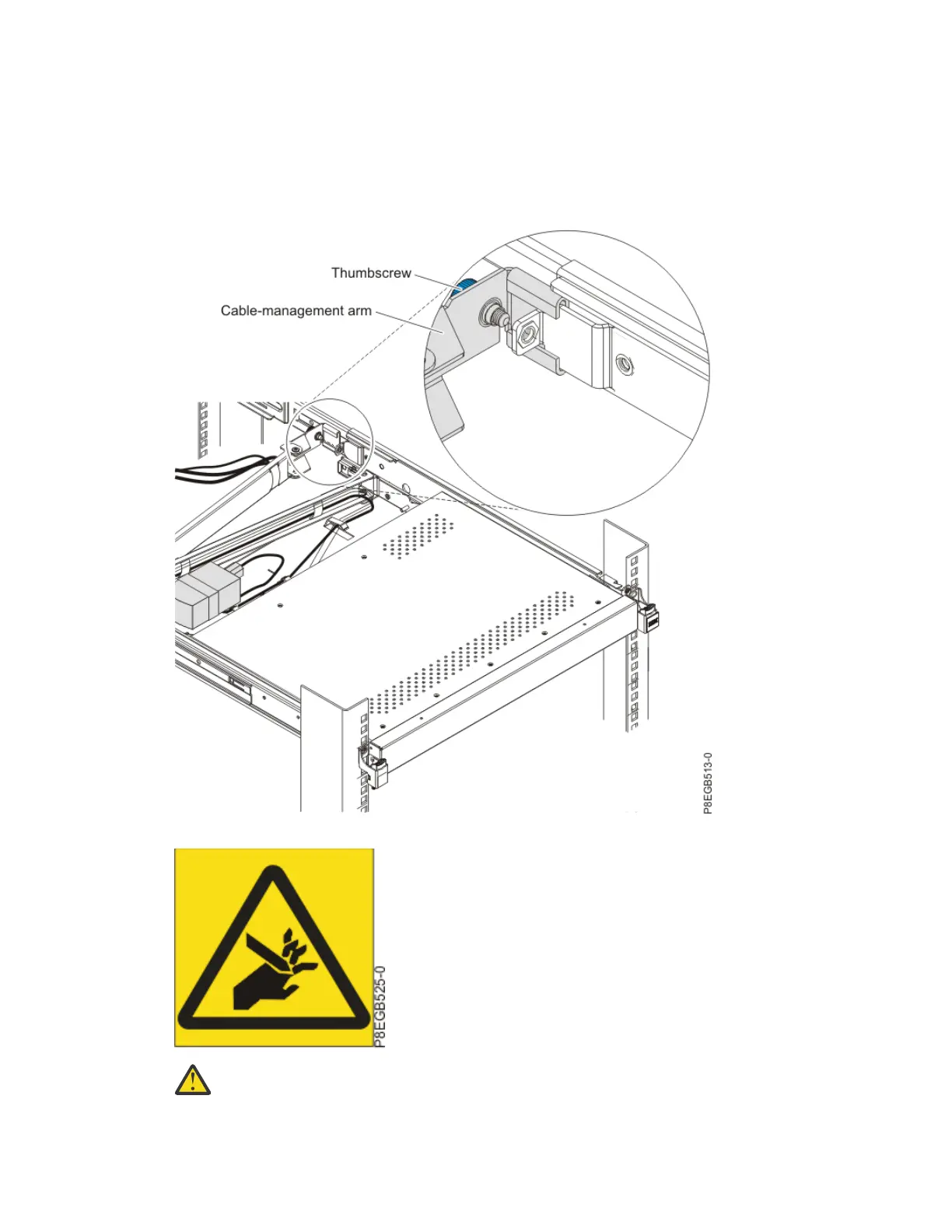

a. Remove the thumbscrew that attaches the cable-management arm to the outer slide-rail bracket.
Slide the C-channel on the cable-management arm completely away from the bracket on the
console unit.
L012
CAUTION:
Pinch hazard. (L012)
b. Fully extend the console unit out of the rack.
c. Press in both release latches 1.
Installing the 7316-TF4 18.5-Inch Flat Panel Rack-Mounted monitor and keyboard
45
