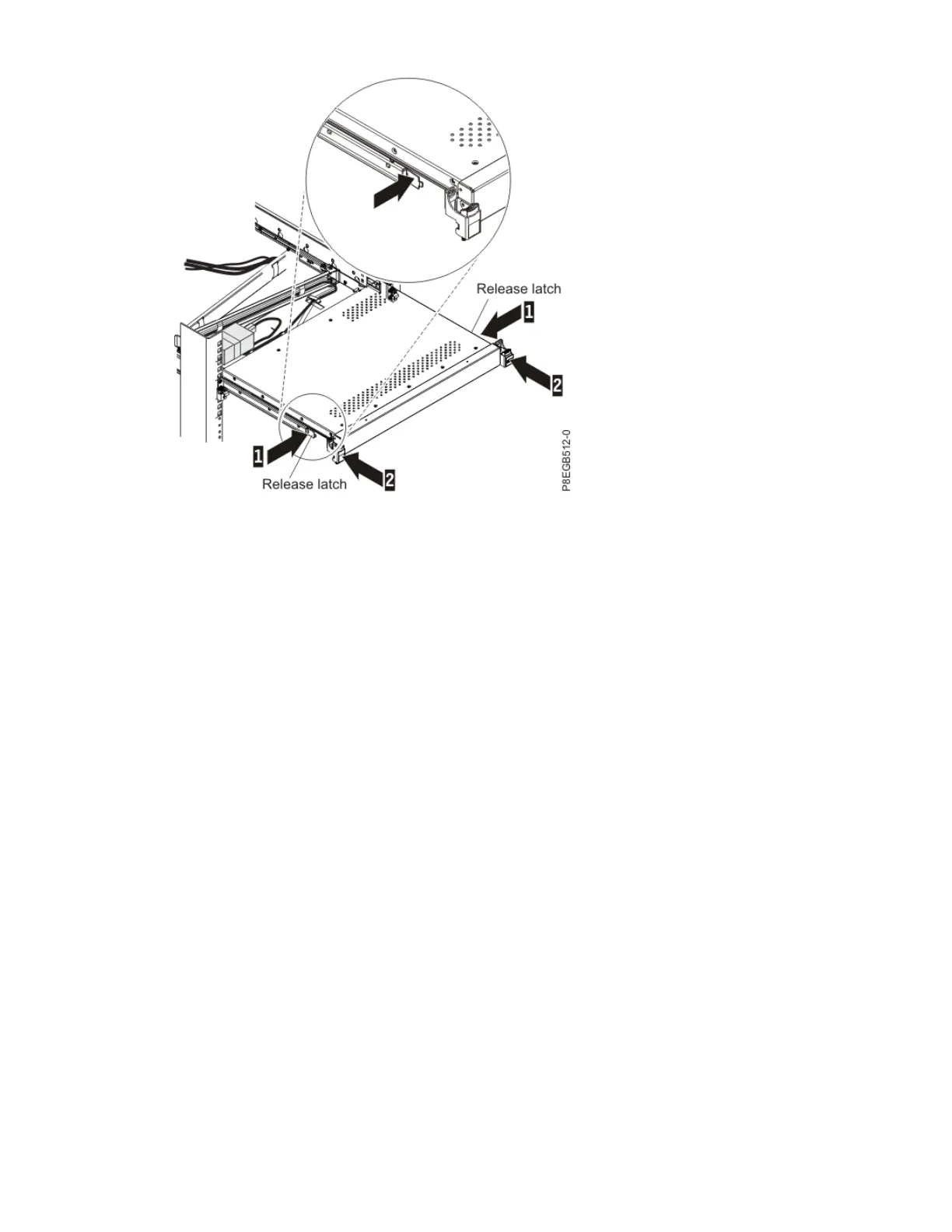

d. Grasp both sides of the console unit and pull it completely out of the rack 2.
e. Place the console unit on a table or other flat surface.
Moving the keyboard
Learn how to move the keyboard from the console unit.
To move the keyboard from the existing console unit to the replacement console unit, complete the
following steps:
1. Carefully lift the flat-panel display to the full upright position.
2. Remove the keyboard-and-mouse cable from the keyboard tray, and then remove the keyboard from
the console unit and set it aside.
3. Place the replacement console unit on a table or other flat surface and make sure that the right side of
the unit extends approximately 76 mm (3 in.) over the edge of the surface. This will help you route the
keyboard-and-mouse cable more easily.
4. Hold the keyboard near the keyboard tray and carefully route the keyboard-and-mouse cable down
through the keyboard tray cutout and up through the cutout that is behind the flat-panel display. (See
the illustration.) Carefully pull the cable through the cutouts.
46
Power Systems: Installing the 7316-TF4 18.5-Inch and 7316-TF5 17.3-Inch Flat Panel Rack-Mounted
Monitor and Keyboard
