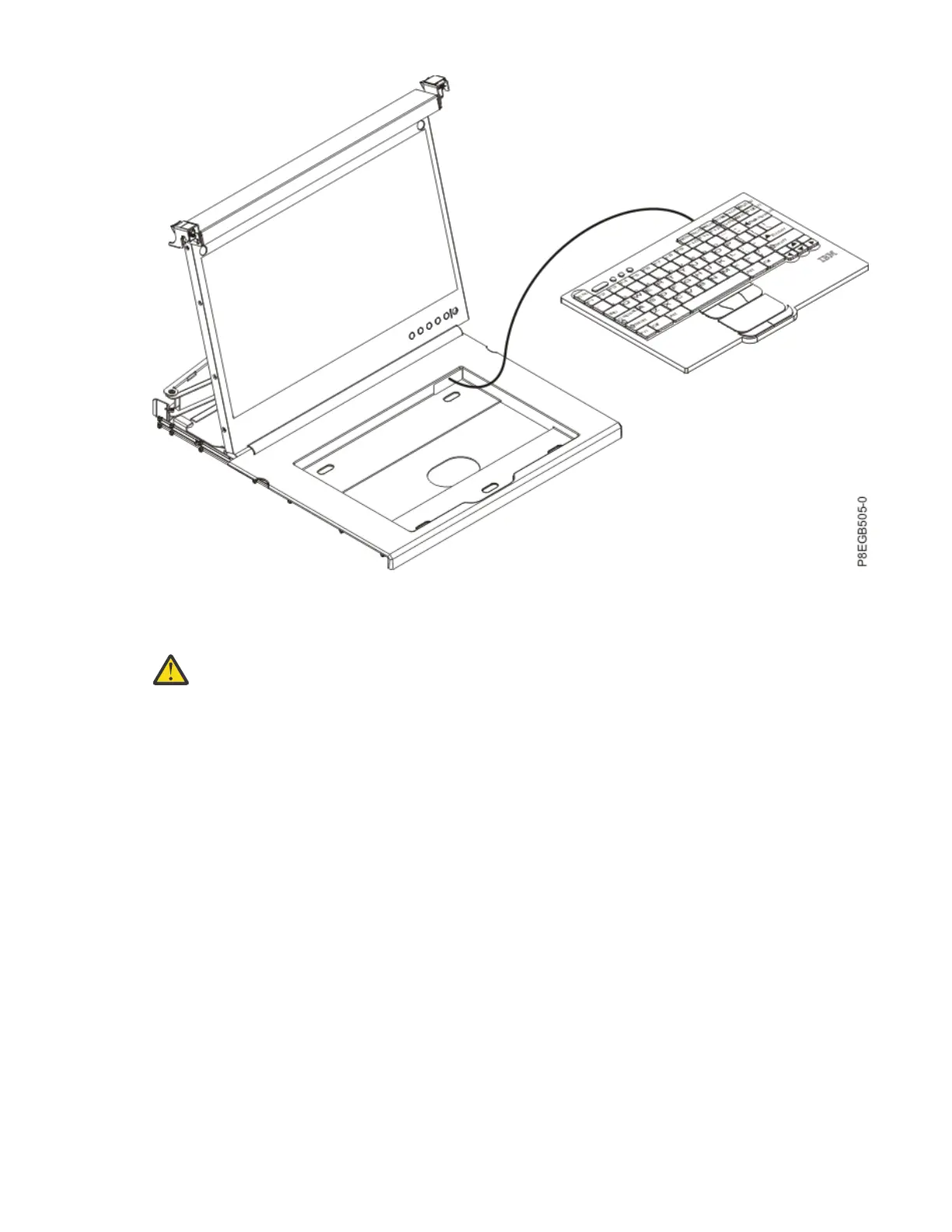

5. Place the keyboard in the tray and exert a small amount of pressure on the keyboard to secure it to the
double-sided tape on the front of the console tray.
6. Close the flat-panel display.
Attention:
• When you route the keyboard-and-mouse cable, make sure that the cable does not hang
below the underside of the keyboard where it might be damaged if it interferes with the
devices in the rack space below the console unit.
• Make sure that you route all cables through the cable-routing features on the console frame
behind the display and along the cable-management arm.
7. Close the flat-panel display.
Removing and replacing the outer slide-rails
Learn how to remove and replace the outer slide-rails.
To remove and replace the outer slide-rails, complete the following steps:
1. Remove the rear bracket of the outer slide-rail from the rack by pulling the blue tab out 1 while you
move the end of the slide-rail away from the rack flange and toward the center of the rack 2.
Installing the 7316-TF4 18.5-Inch Flat Panel Rack-Mounted monitor and keyboard
47
To Next Page
