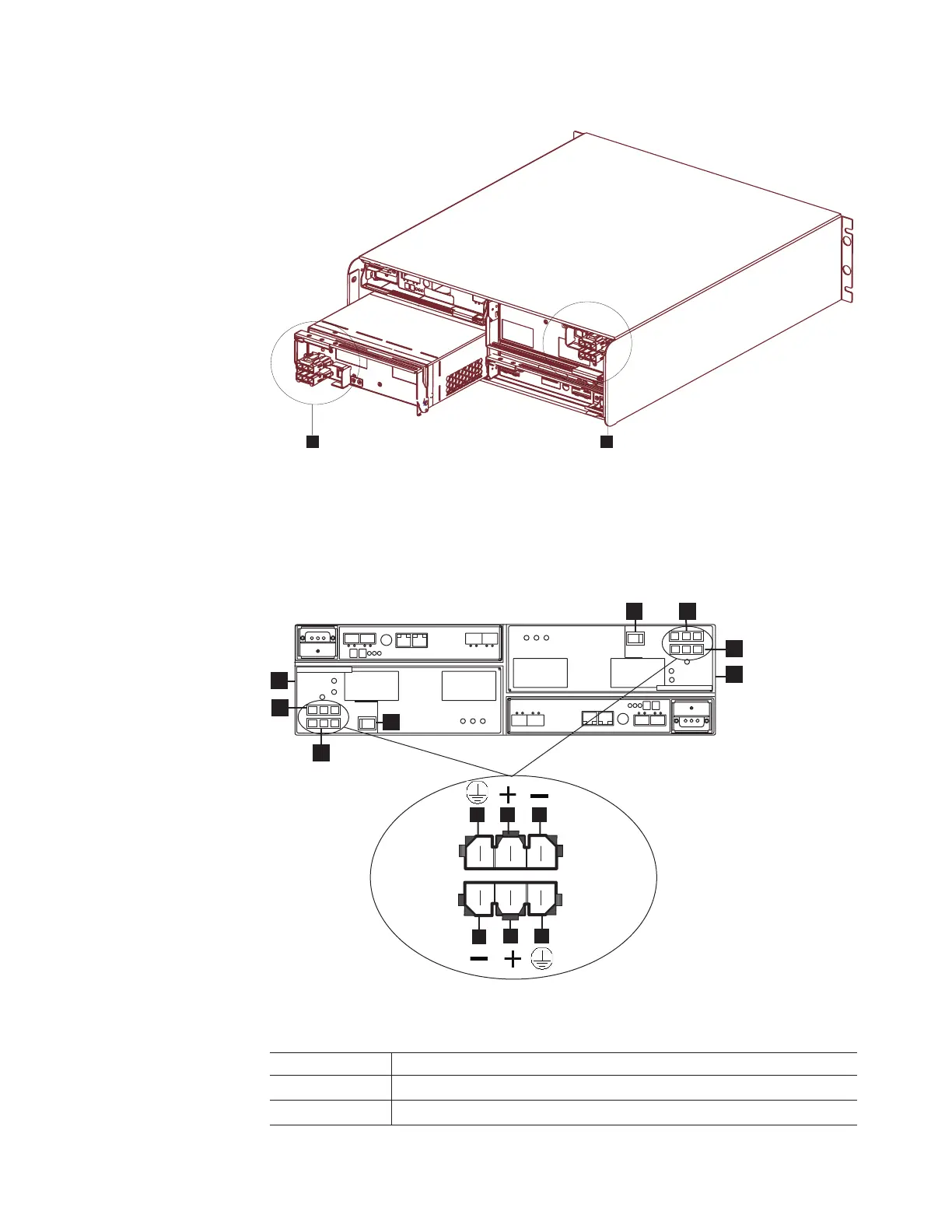

Figure 8 shows the dc power supply and fan unit components for the DS4700
Express model 70 and Figure 9 on page 16 shows the dc power supply and fan unit
components for the DS4700 Express model 72.
Table 6. DC power supply and fan unit description for DS4700 Express model 70
Number Description
1 DC power supply and fan unit A
2 DC power connector A1
1
1 1
ds470070
Figure 7. DC power supply and fan unit
ds470074
1
2
3
4
5
6
7
9
10
8
109
8
4
Figure 8. DC power supply and fan unit for DS4700 Express model 70
Chapter 1. Introduction 15
