14 IBM Flex System FC5022 16Gb SAN Scalable Switch User’s Guide
Installing the switch
2

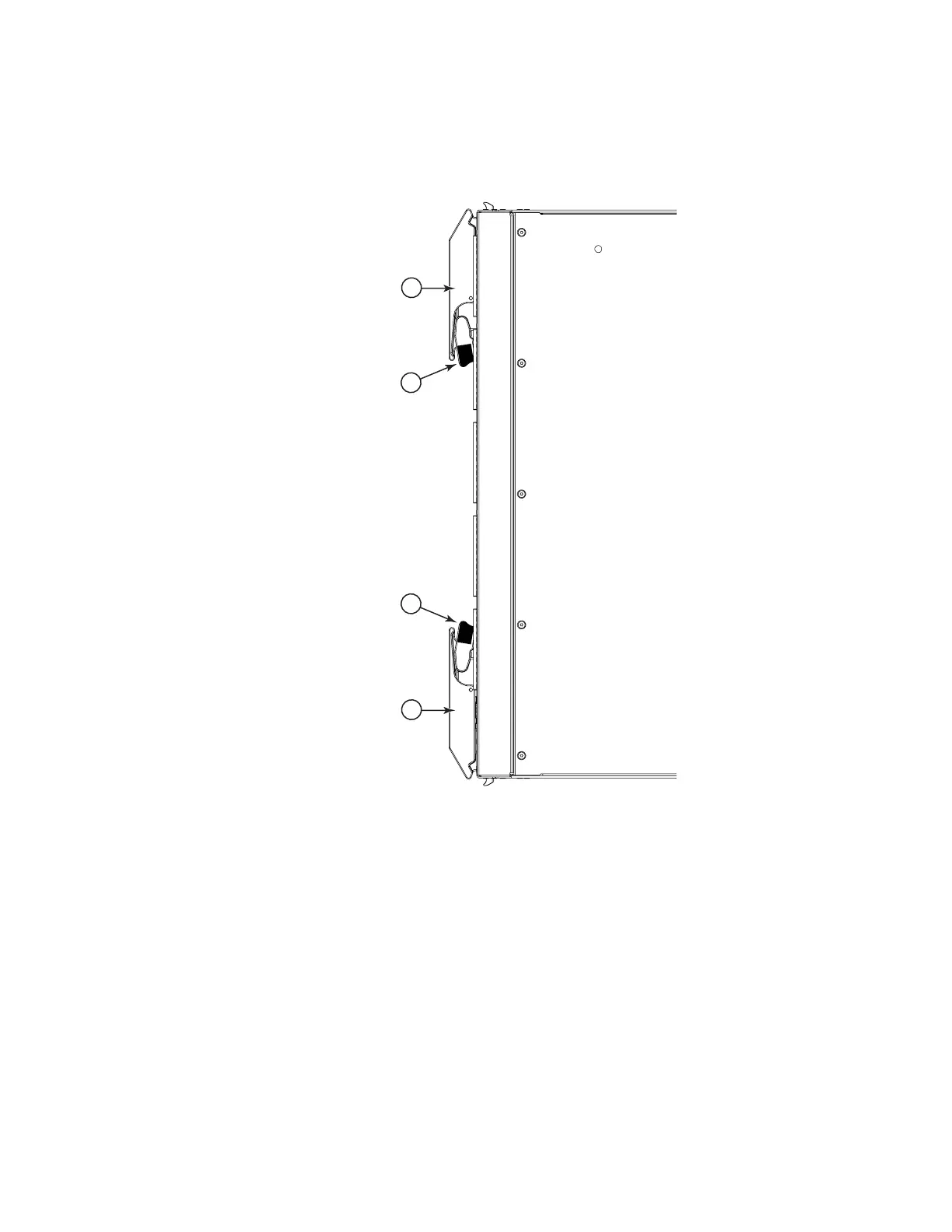

Figure 3 shows the release levers and locks on an IBM Flex System FC5022 16Gb SAN Scalable
Switch.
FIGURE 3 Switch release levers and locks
To install the switch, complete the following steps.
1. Read the following safety information:
• “Safety” on page vii
• “System reliability guidelines” on page 11
2. Select the chassis bay in which to install the switch. For details about bay requirements and
bay locations, see the documentation that comes with the chassis and compute nodes.
3. Remove the filler panel from the selected bay. Store the filler panel for future use.
1 Release lever 2 Release lever lock
