22 IBM Flex System FC5022 16Gb SAN Scalable Switch User’s Guide
Locating the information panel, LEDs, and external ports
2
Locating the information panel, LEDs, and external ports

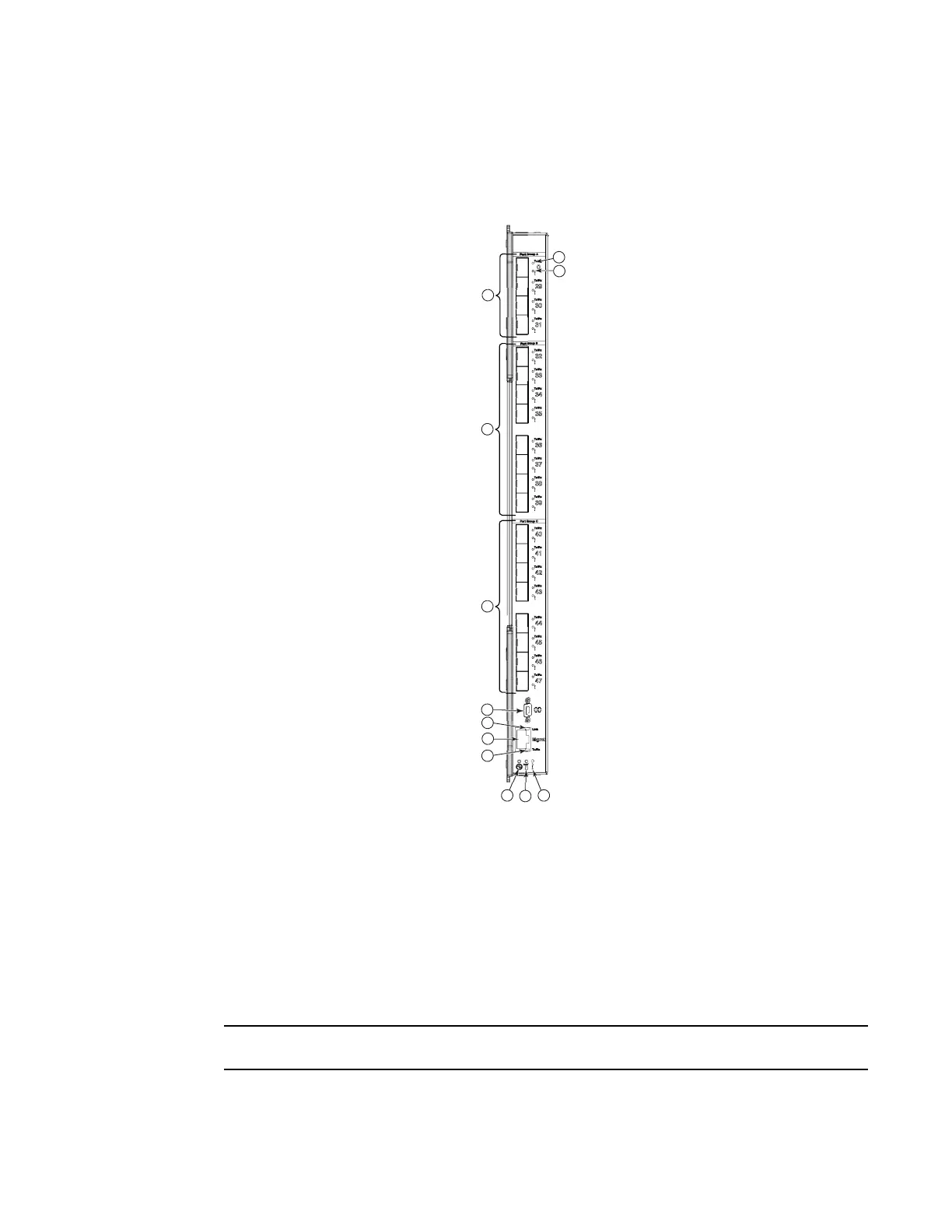

Figure 9 shows the IBM Flex System FC5022 16Gb SAN Scalable Switch information panel.
FIGURE 9 Switch information panel
The illustrations in this document might differ slightly from your actual hardware.
1 Trunk Group A (shown as ports 0 and 29–31) 7 Link LED
2 Trunk Group B (shown as ports 32–39) 8 System Status LED: Power
3 Trunk Group C (shown as ports 40–47) 9 System Status LED: Locator
4 Mini-USB console port 10 System Status LED: Fault
5 Tx/Rx LED 11 Fault (!) LED (One LED per port)
6 RJ-45 Ethernet port (Mgmt) 12 Tx/Rx LED (One LED per port)
