6
5
1
7

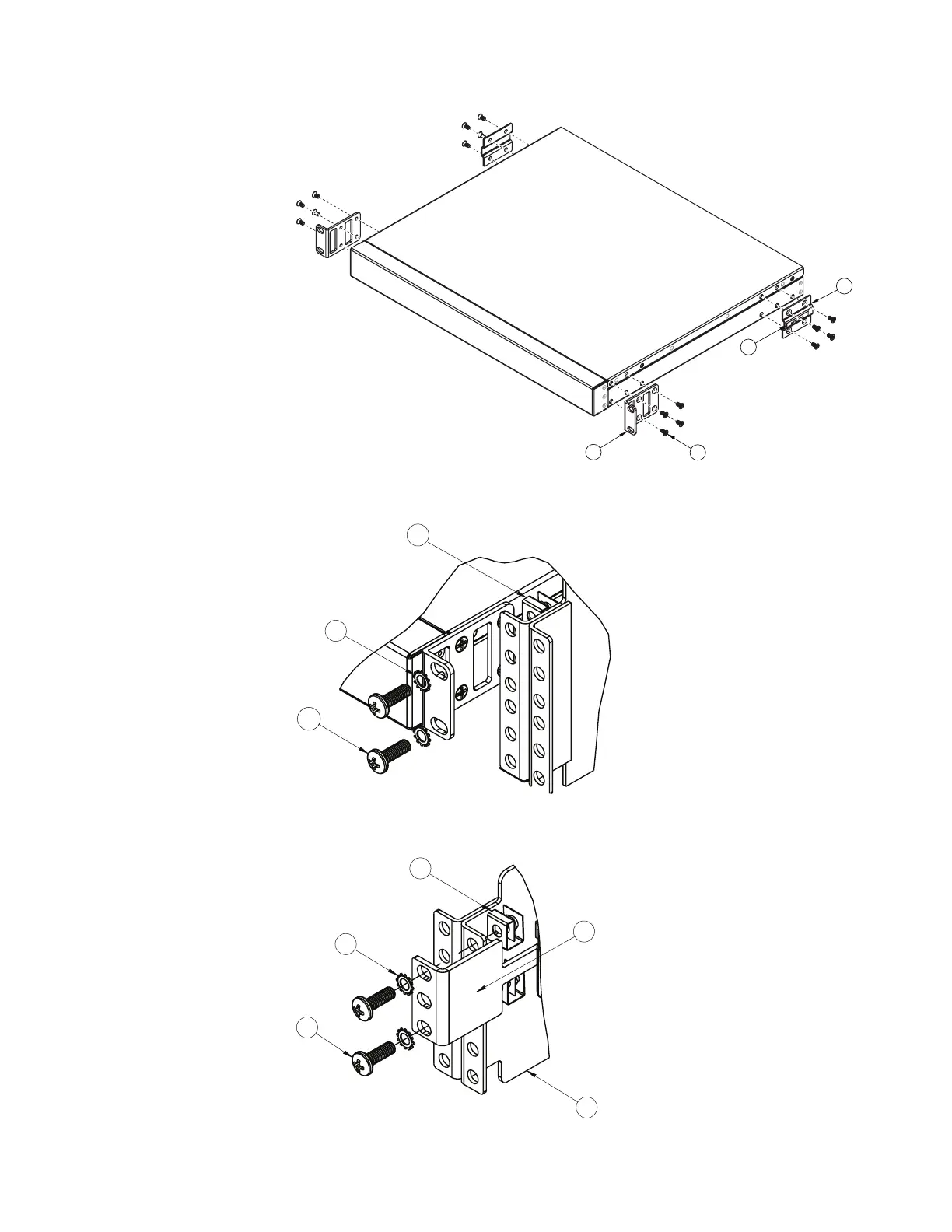

3. Use M6 washers and screws are used to mount the switch unit into the rack.
Torque the screws to approximately 5.7 Nm +/- 0.1 Nm (50 inch-pounds).
2
3
4
4. Use M6 washers, screws, and clip nuts are used to attach the alignment plate.
Torque the screws to approximately 5.7 Nm +/- 0.1 Nm (50 inch-pounds).
8
3
2
4
10
5. Slide the RackSwitch into the rack.
Chapter 2. Installing the RackSwitch, components and options 21
