2
3
4

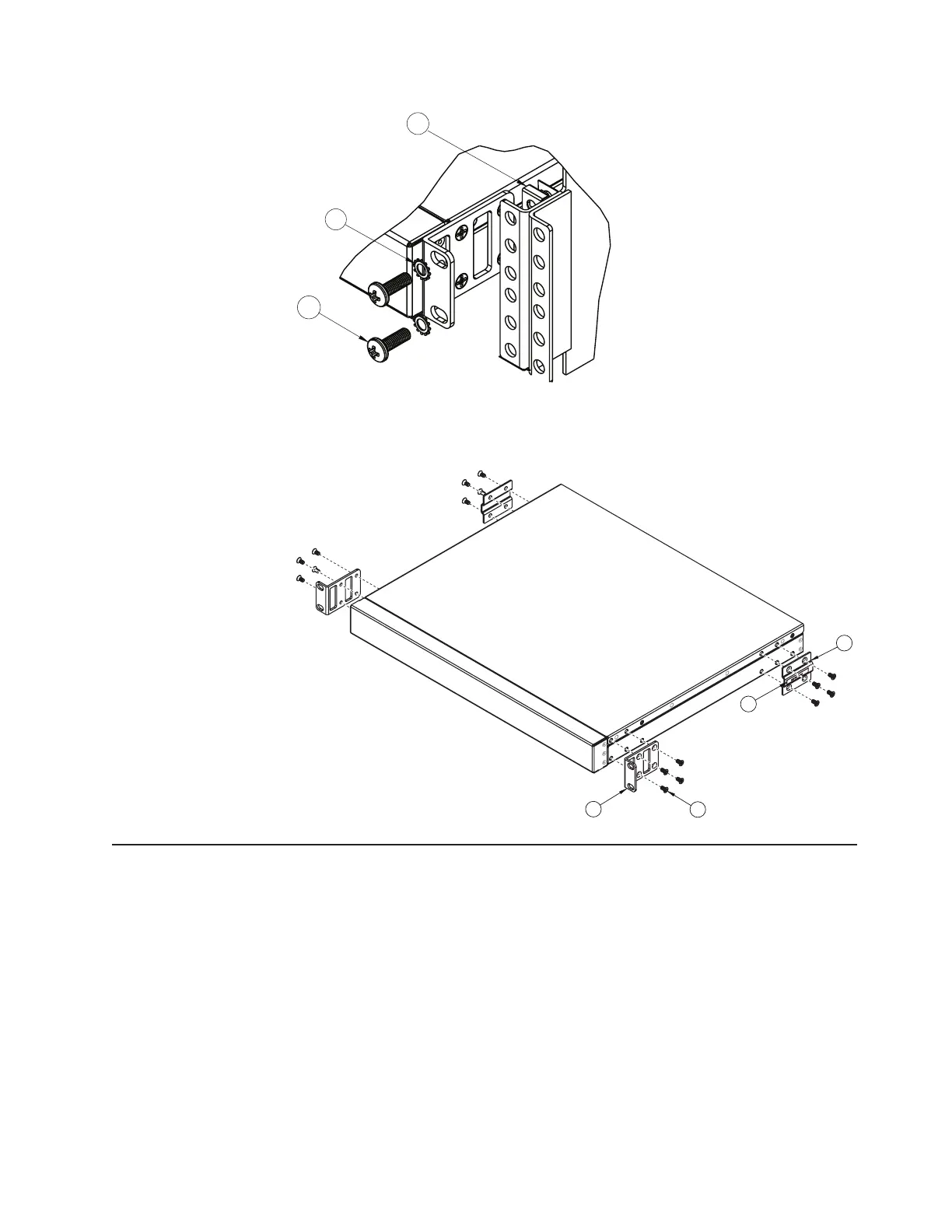

4. Slide the RackSwitch out of the rack.
5. Loosen and remove the M4 screws that attach front and rear mounting brackets
to each side of the switch unit.
6
5
1
7
Removing and replacing the power supply module
The RackSwitch operates with either one or two active power supply modules. You
can replace a hot-swap power supply module without powering off the switch or
disrupting switch functions.
You can operate the switch with two AC power supply modules, or one power
supply module and a blank cover. For correct airflow, both power supply slots must
be populated with either a power supply module or a blank module.
Each AC power supply module has a power cord for connection to an AC power
outlet.
Each power supply module has three LEDs that are visible from the rear panel. The
following table describes the LEDs.
Chapter 3. Removing and replacing the RackSwitch and components 39
