6. Loosen and remove the M4 screws that attach the front mounting brackets to
each side of the switch.
7
1
9
9
Removing the RackSwitch chassis from an iDataPlex rack

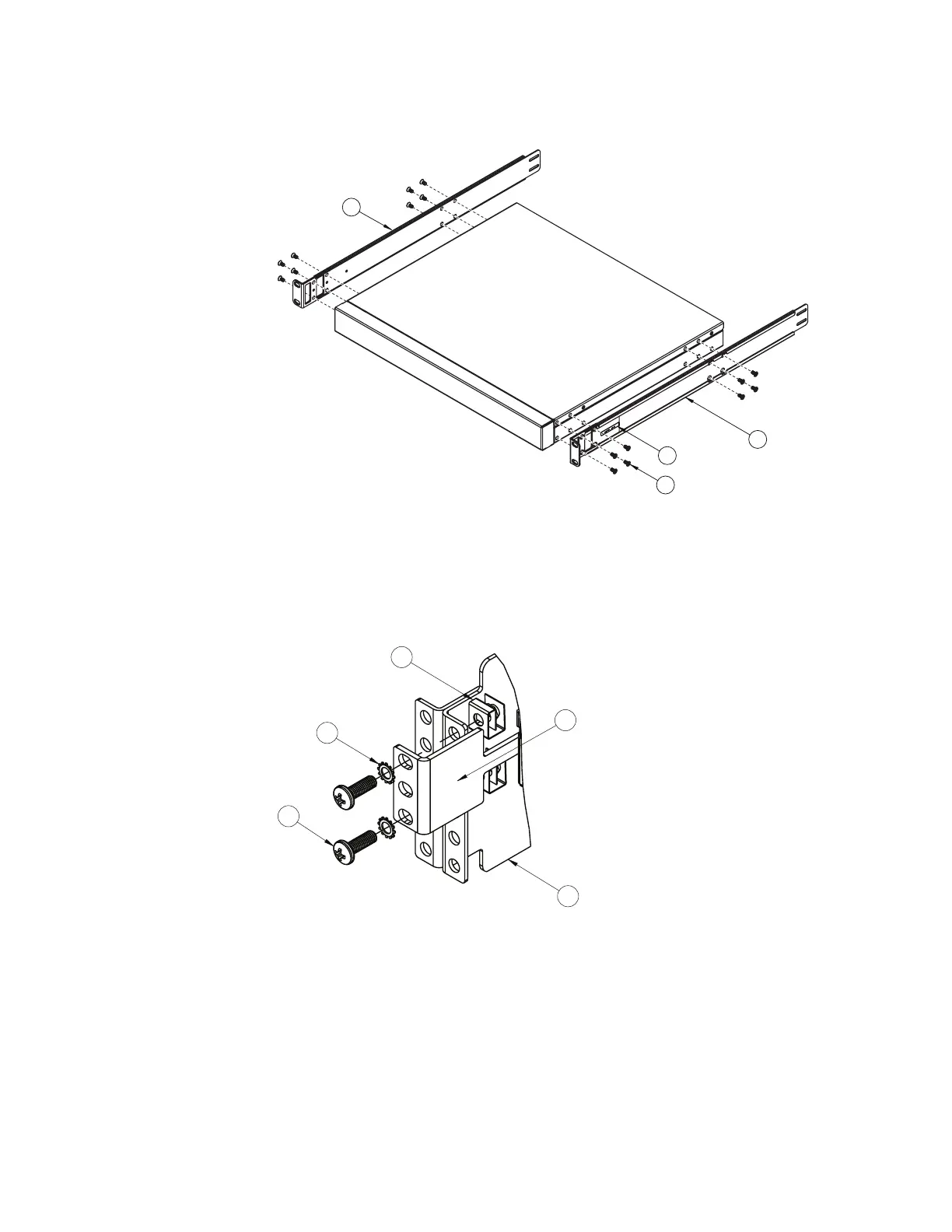

To remove the RackSwitch from the iDataPlex rack, complete the following steps:
1. Disconnect all cables.
2. Loosen and remove the M6 washers, screws, and clip nuts that attach the
alignment plate.
8
3
2
4
10
3. Loosen and remove the M6 washers and screws that mount the switch unit into
the rack.
38 IBM System Networking RackSwitch G8052: Installation Guide
