DANGER
Rack-mounted devices are not to be used as shelves or work spaces.
(L002)
To install the RackSwitch in an IBM System Networking adjustable 19” 4-post rail
rack (for Power and System x racks), complete the following steps:
1. Locate and record the product switch information to configure and register your
product and set aside. See “Before installing the RackSwitch” on page 13.
Note: If this switch is a replacement switch, copy the product information from
the original switch onto the RID label that is shipped with replacement
switch and affix the new label to the bottom of the new switch.

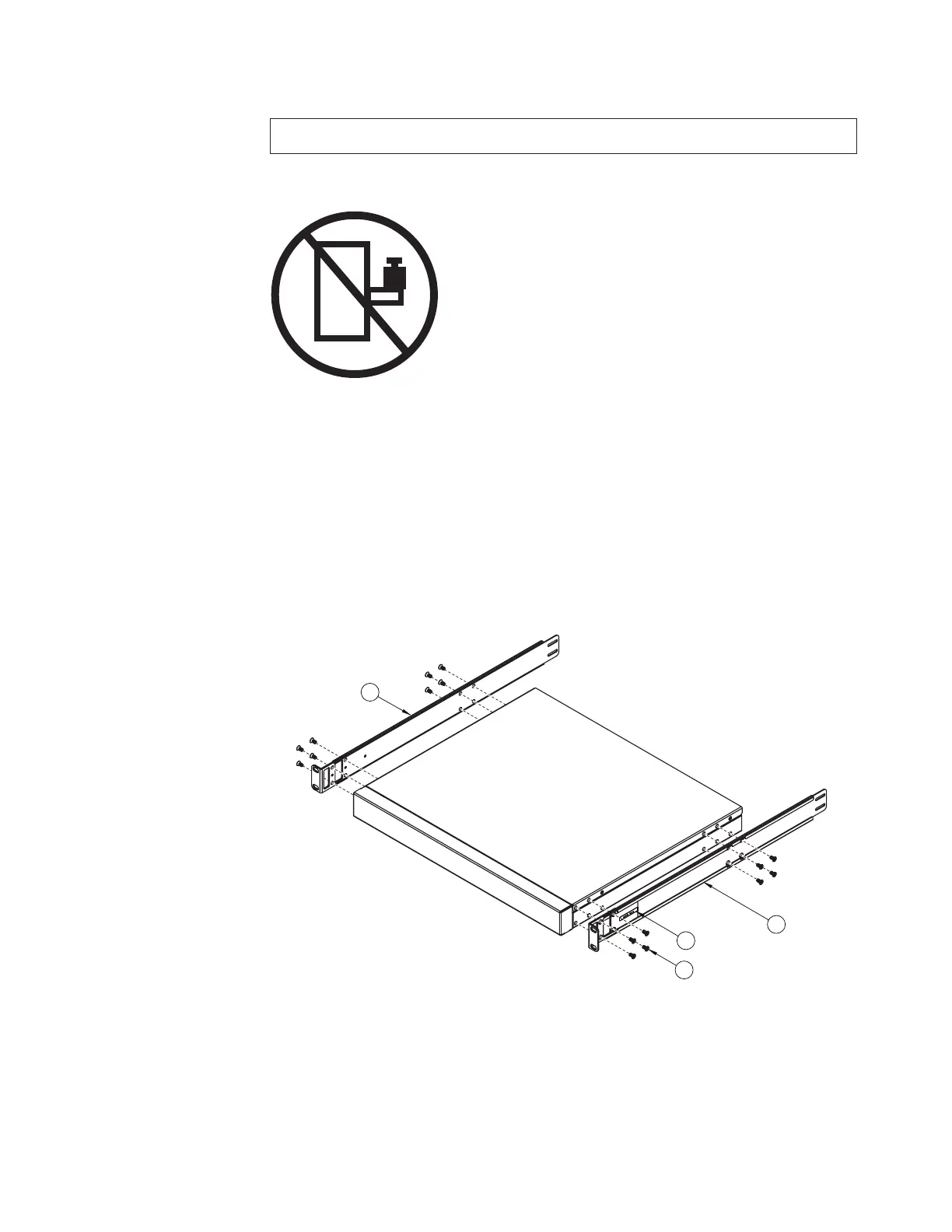

2. Use the M4 screws to attach the front mounting brackets to each side of the
switch. Torque the screws to approximately 2.0 Nm +/- 0.1 Nm (17.7
inch-pounds).
7
1
9
9
3. Use the M6 screws, washers, and clip nuts are used to connect the front
mounting brackets to the front and rear posts in the rack. Torque the screws to
approximately 5.7 Nm +/- 0.1 Nm (50 inch-pounds).
Chapter 2. Installing the RackSwitch, components and options 23
