2. Align the three pins on the rear of the slide rail with the three holes in the selected U on the rear of
the rack. Push the rails so that the pins go into the holes (1), and drop the slide rail down (2) until it
latches into place.
3. Pull the slide rail forward and insert the two pins (1) on the front of the rail into the two lower holes
in the U on the front of the rack. Drop the rail into place until it clicks into place. Push the front
latch (2) in all the way. Repeat steps 1 through 3 to install the other rail into the rack. Make sure that
each front latch is fully seated.
4. Pull the slide rails forward (1) until they click, twice, into place. Carefully lift the server and tilt it
into position over the slide rails so that the rear nail heads (2) on the server line up with the rear
slots (3) on the slide rails. Slide the server down until the rear nail heads slip into the two rear slots,
and then slowly lower the front of the server (4) until the other nail heads slip into the other slots on
the slide rails. Make sure that the front latch (5) slides over the nail heads.

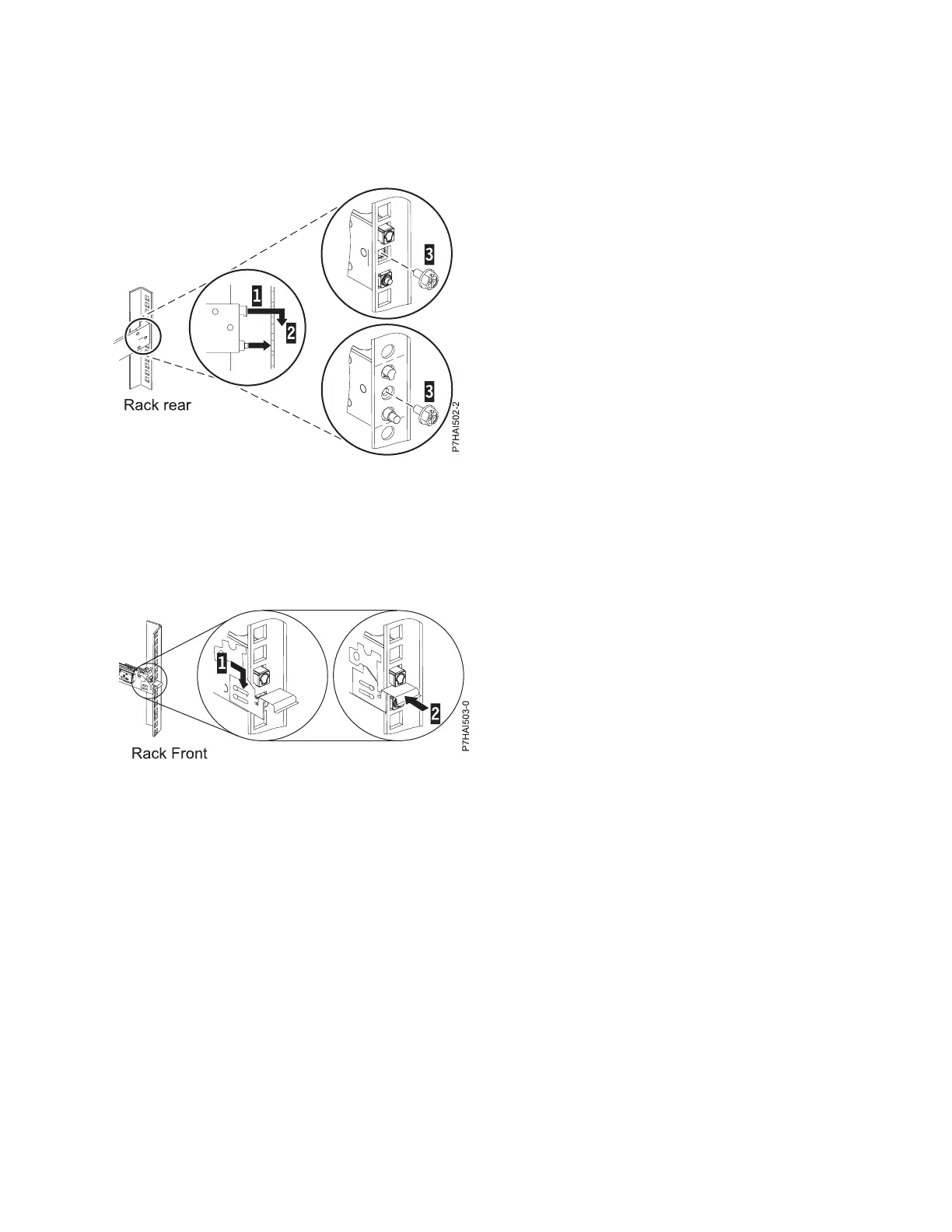

Figure 16. Align the pins with the holes in the rear of the rack
Figure 17. Rack front rail and pins
