5. Lift the blue release latches (1) on the slide rails and push the server (2) all the way into the rack
until it clicks into place.
6. The cable-management arm can be installed on either side of the server. The following figure shows
it being installed on the left side. To install the cable-management arm on the right side, follow the
instructions and install the hardware on the opposite side. Connect one end of the support arm (1) to
the same slide rail to which you plan to attach the cable-management arm so that you can swing the
other end of the support arm (2) toward the rack.

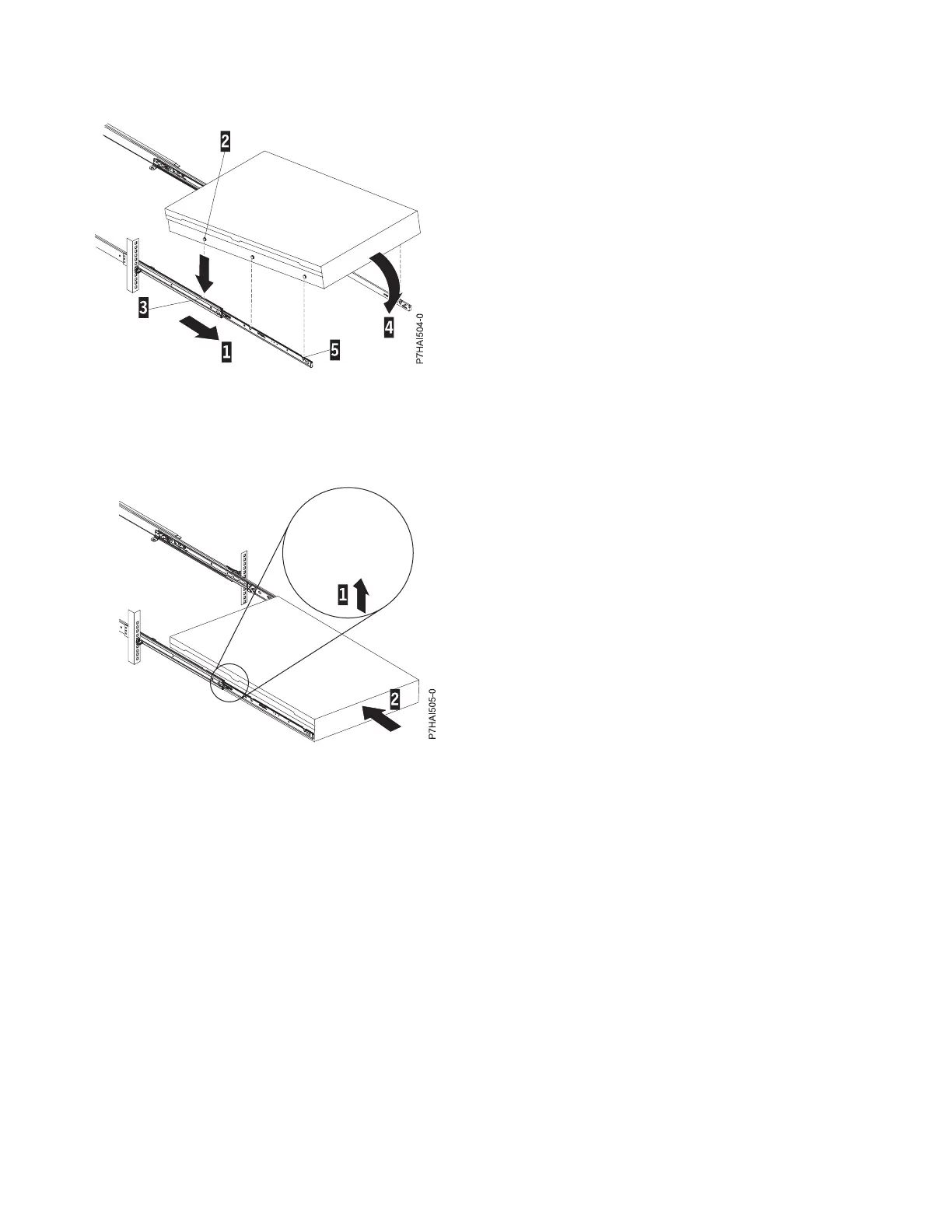

Figure 18. Slide rails extended, server nail heads aligned with slots in rail
Figure 19. Release latches and server
38 Power Systems: Installing and configuring the Hardware Management Console
