IBM Hardware Management Console User Manual

7. Install the L-shaped cable-management stop bracket (1) on the unattached end of the support arm.
Turn the bracket (2) to secure it to the support arm.
8. To attach the other side of the support arm to the backside of the slide rail, pull the pin out (1), and
then slide the bracket (2) into the slide rail.
9. Pull out the mounting bracket pin (1) and slide the mounting bracket (2) into the slide rail onto
which you are installing the cable-management arm. Push the bracket into the slide rail until the

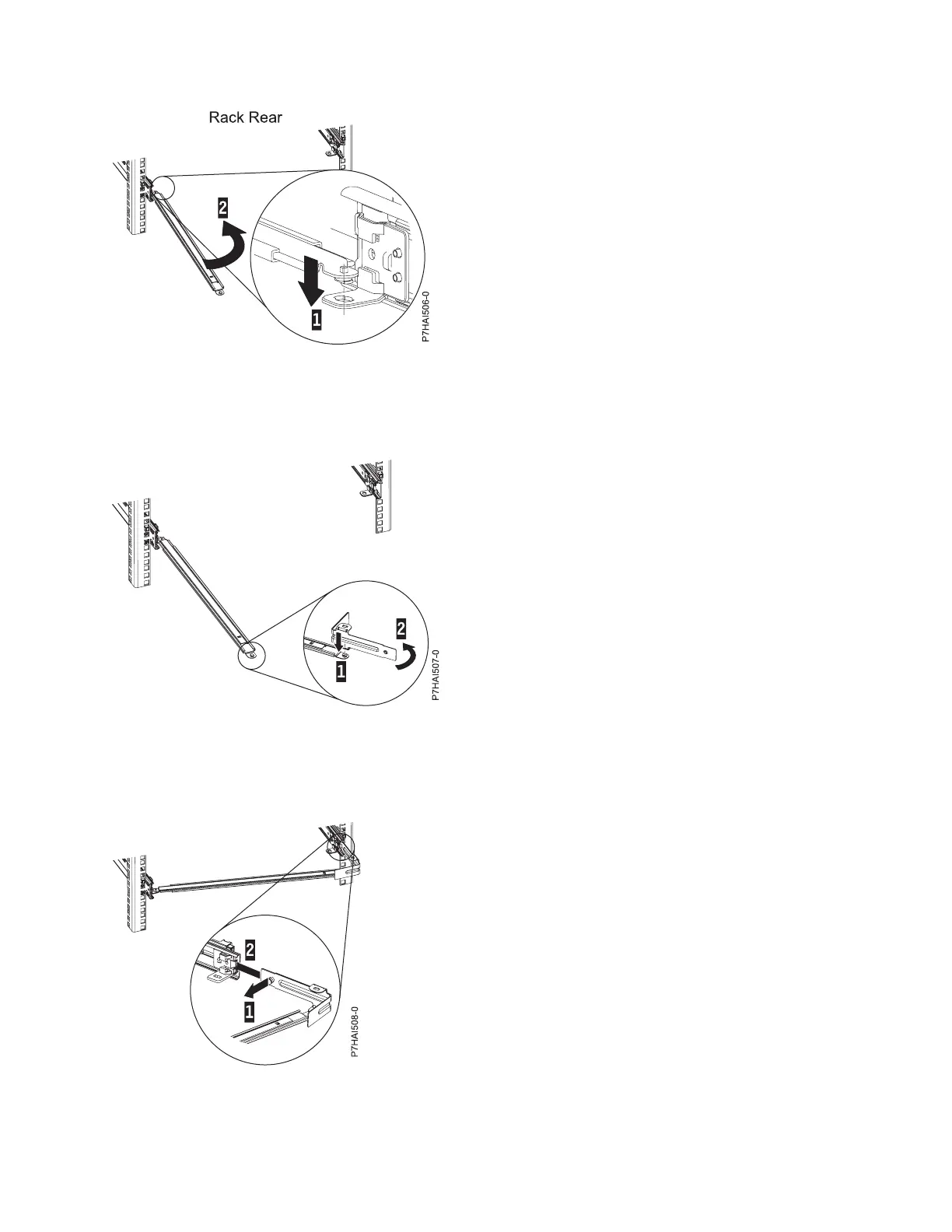

Figure 20. Support arm connection
Figure 21. Cable-management stop bracket secured to the support arm
Figure 22. Pin extended, bracket installed into slide rail
Installing and configuring the Hardware Management Console 39
