Procedure
1. Press down on the latch tab to release the fan from its locked position. See detail No. 1 in the gure
below.

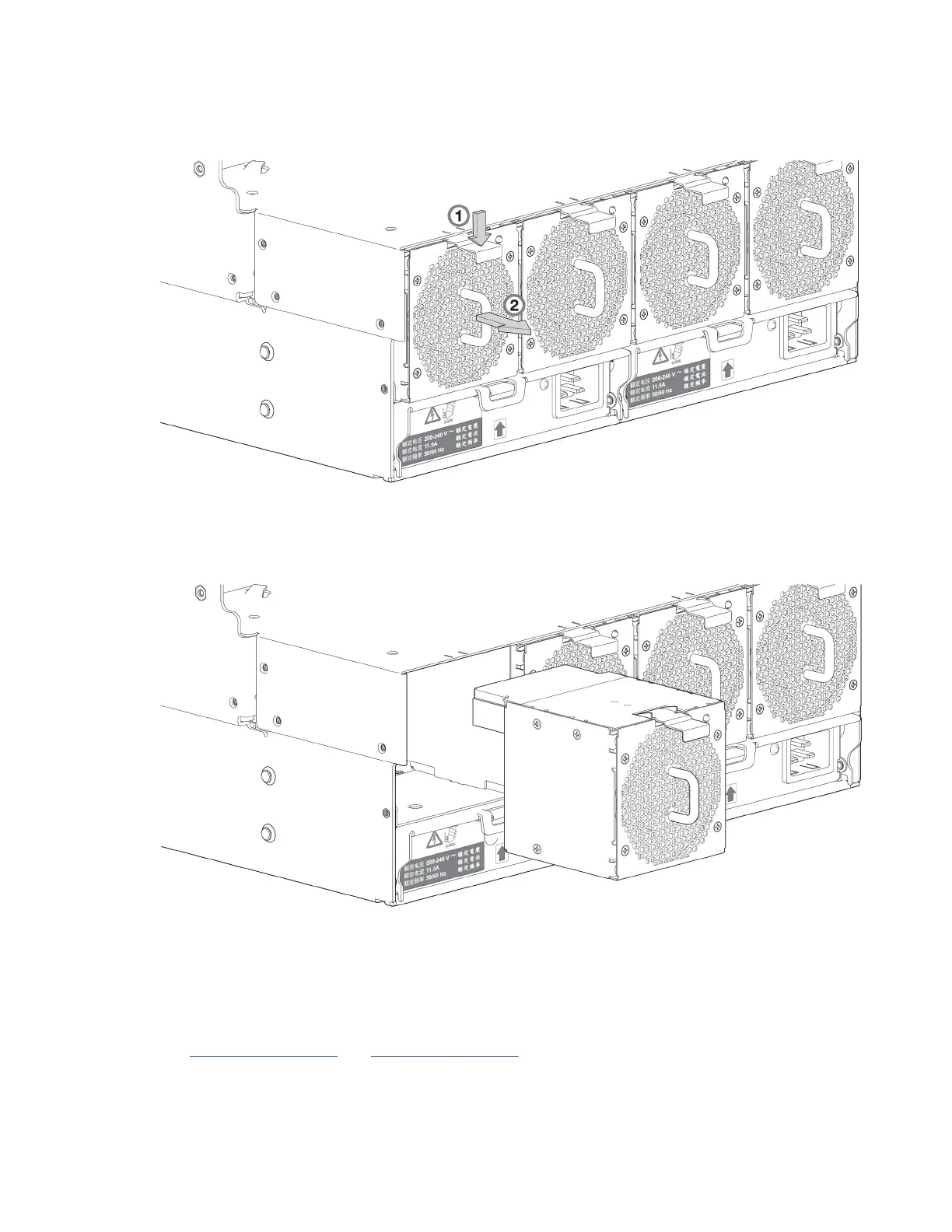

Figure 29. Removing a system fan (1 of 2)
2. Grasp the fan module handle and carefully pull the fan out of its slot. See also the detail in the gure
below.
Figure 30. Removing a system fan (2 of 2)
Installing a system fan module
About this task
Refer to Figure 29 on page 59
and Figure 30 on page 59 when performing this procedure, but ignore the
directional arrow—since you will insert the module into the slot—rather than remove it.
Important: Handle the system fan carefully, and avoid damaging connectors.
Chapter 7. Module removal and installation
59
