Installing a drive carrier module
Procedure
1. Release the drive carrier handle by pressing the latch in the carrier handle towards the handle hinge to
release the carrier handle as shown in the gure below.

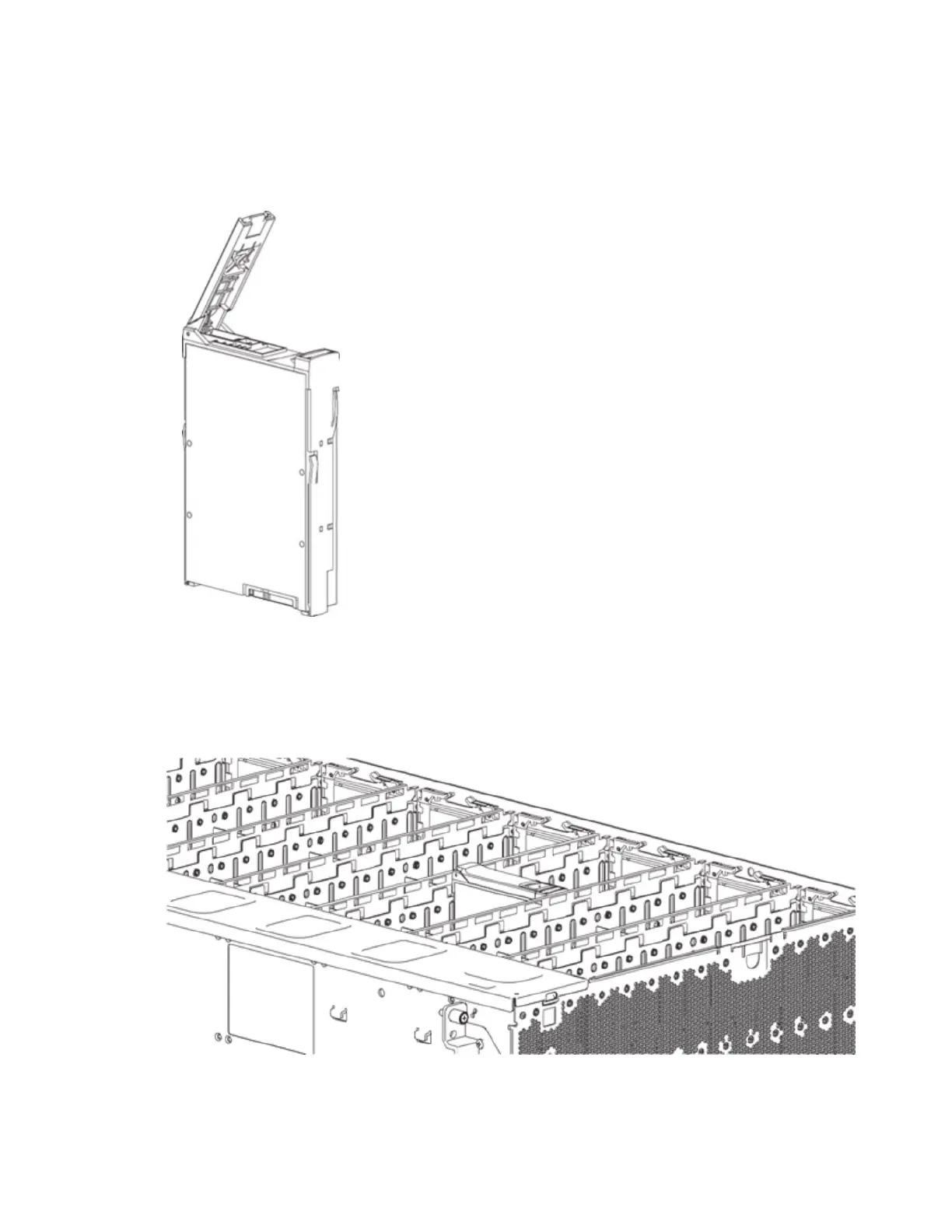

Figure 37. Drive carrier module in open position
2. Insert the drive carrier module into the enclosure. Make sure that the drive carrier is positioned such
that the front face of the disk is facing up, and the handle opens from the left as you face the enclosure
top panel. The module should be revolved such that its horizontal axis is parallel to the chassis
longitudinal axis, as shown in the gure below.
Figure 38. Installing a drive carrier module (1 of 2)
3. Slide the drive carrier fully into the disk slot within the enclosure.
Chapter 7. Module removal and installation
65
