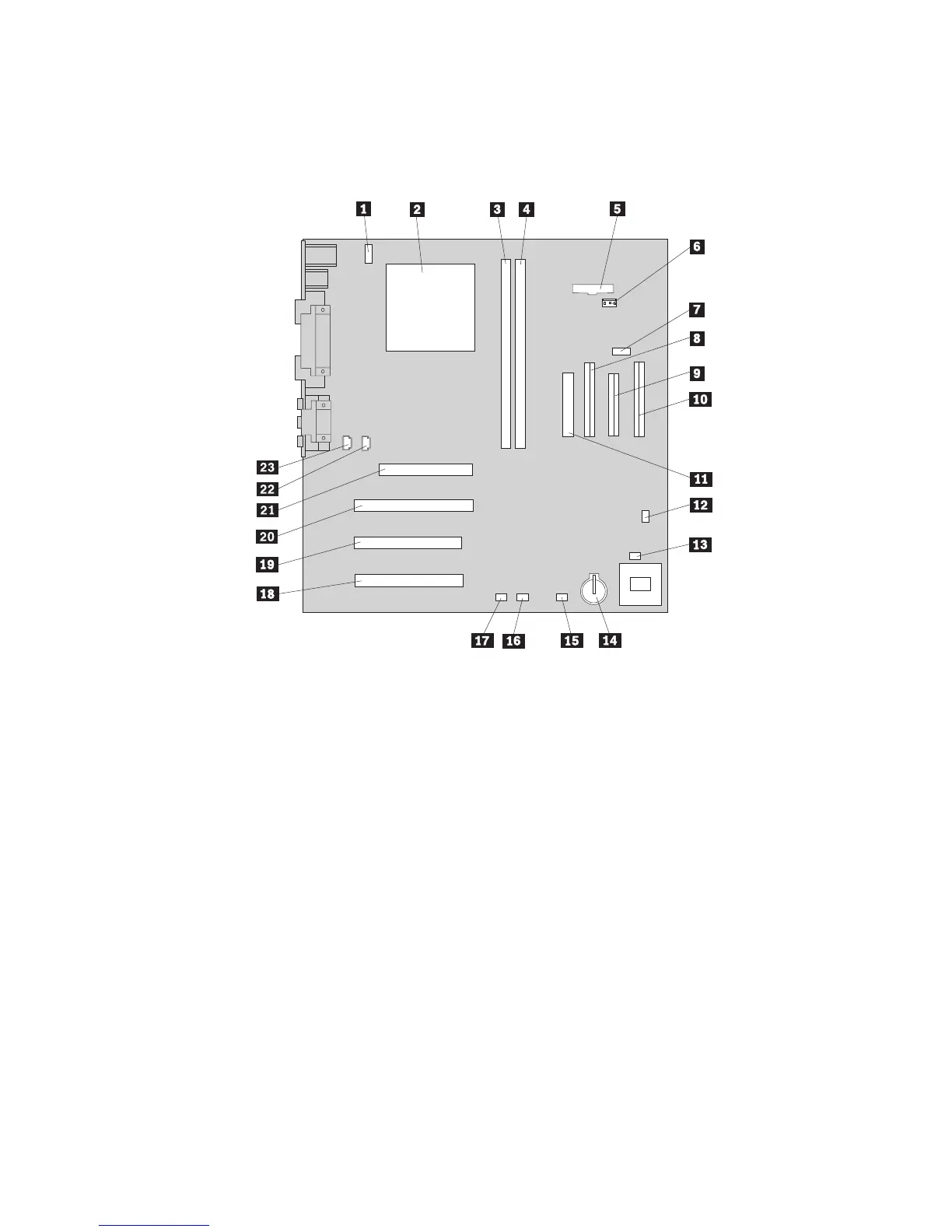

Components of the A40 and A40p system board
If your computer is a type A40 or A40p, see the following illustration for the
location of parts on the system board.
Note: An illustration of the system board and additional information is
provided on a label located on the inside of the computer chassis.
1 CPU fan connector 12 CMOS clear/recovery jumper
2 Microprocessor 13 Front fan connector
3 DIMM 1 14 Battery
4 DIMM 2 15 SCSI adapter LED connector
5 Power LED connector 16 Wake on LAN connector
6 RFID connector 17 PCI slot 3
7 Front USB connector 18 PCI slot 2
8 Secondary IDE connector 19 PCI slot 1
9 Diskette connector 20 AGP connector
10 Primary IDE connector 21 CD-ROM audio connector
11 Power connector 22 Speaker connector
Chapter 5. Installing options 49
