Drive specifications — small form factor desktop model
Your computer comes with the following IBM-installed drives:
v A CD-ROM drive in bay 1 (some models)
v A 3.5-inch hard disk drive in bay 2
v A 3.5-inch diskette drive in bay 3
Models that do not have drives installed in bay 3 have a static shield and bay
panel installed.

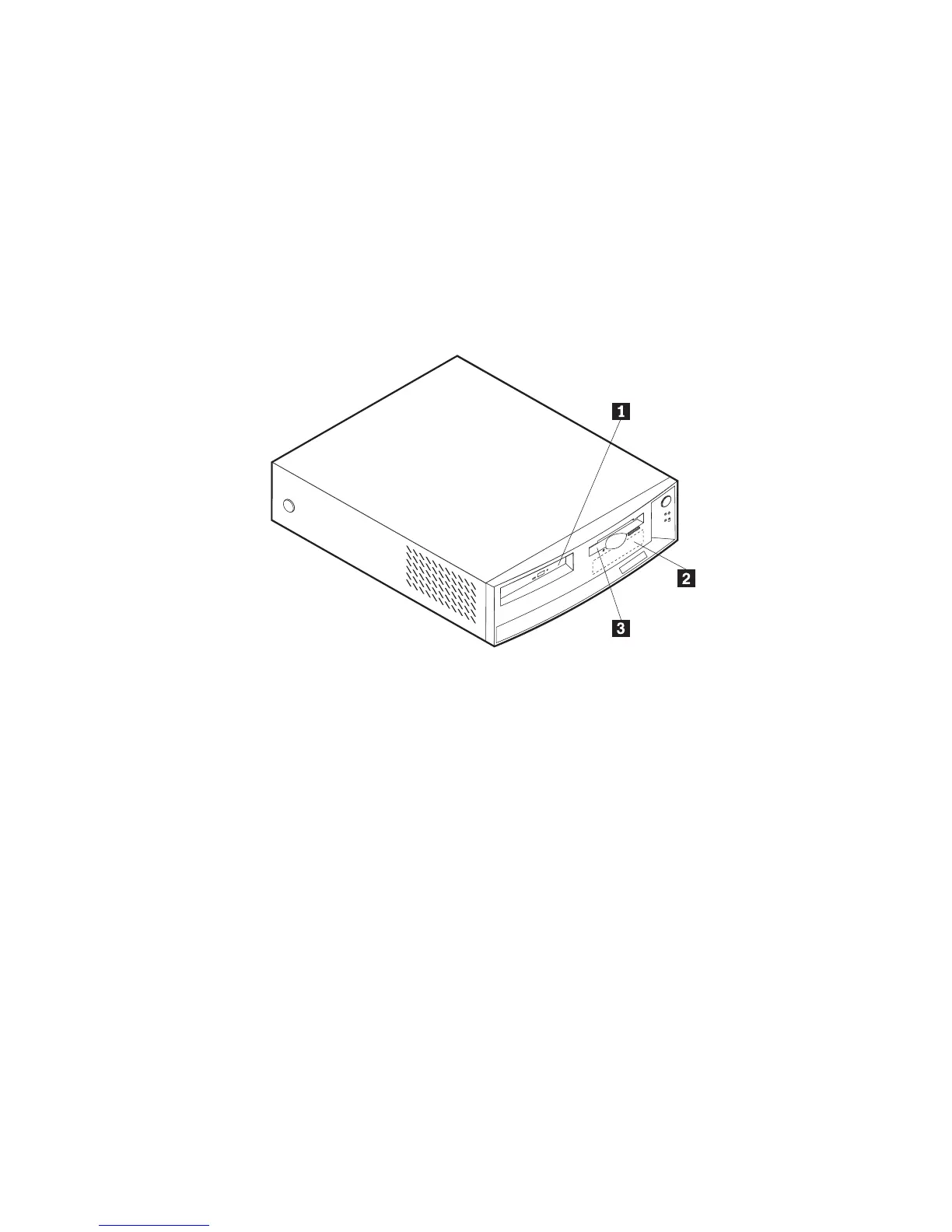

The following table describes some of the drives you can install in each bay
and their height requirements.
1 Bay 1 - Max Height: 25.4 mm (1.0 in.) Slimline CD-ROM drive (standard in
some models)
2 Bay 2 - Max Height: 25.4 mm (1.0 in.) 3.5-inch hard disk drive (preinstalled)
3 Bay 3 - Max Height: 12.7 mm (0.5 in.) 3.5-inch hard disk drive (preinstalled)
Chapter 5. Installing options 59
