IBM NetVista Hardware Maintenance Guide

General Information 101

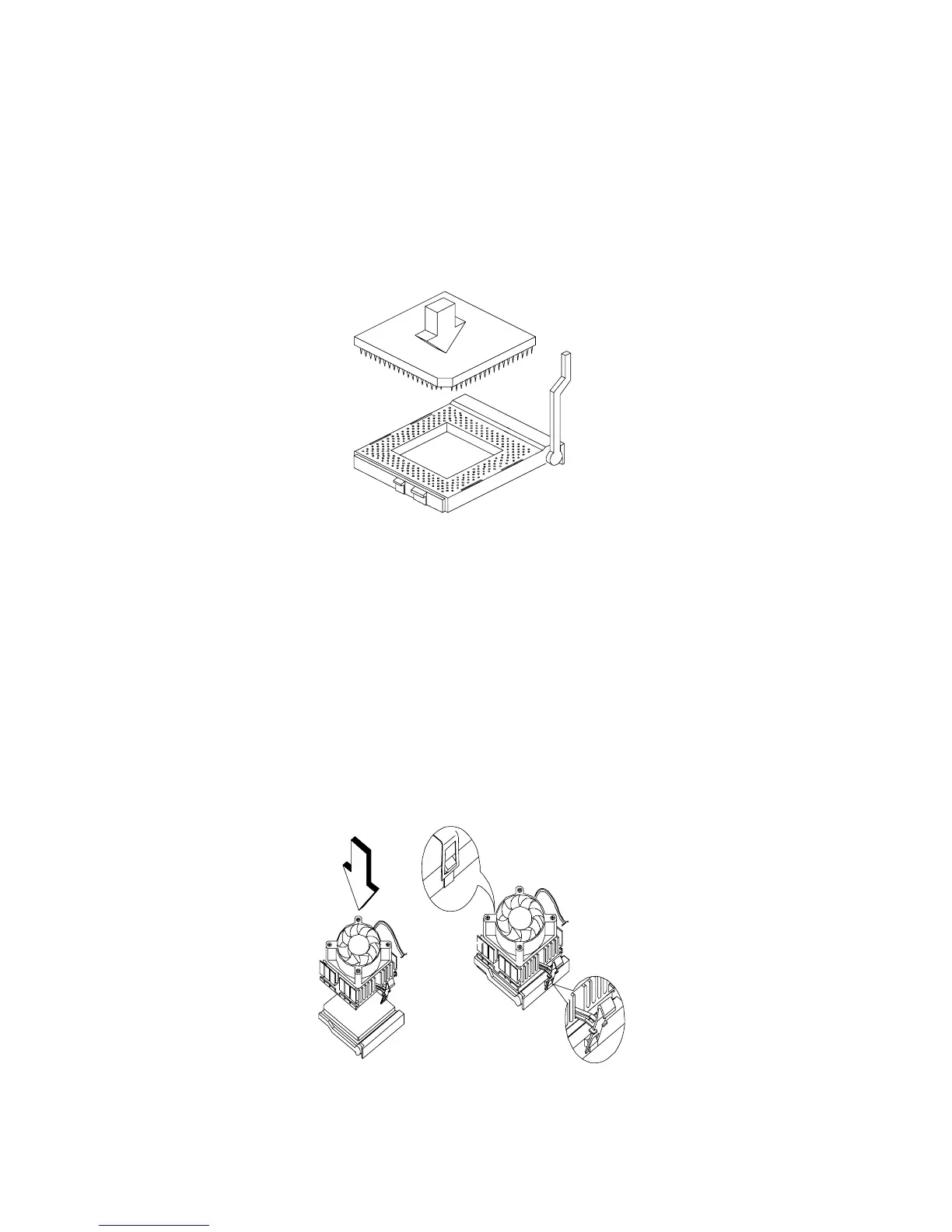

NOTE: Installing the processor
•
Place the ZIF socket release lever to the release
(up) position.
•
Insert the new processor, matching the notched
corner of the processor with the pin 1 indicator on
the socket.
•
Push down the lever to lock the processor to the
socket.
•
Place the processor heat sink fan over the
processor
•
Insert one side of fan brace onto the ZIF socket.
•
Secure by latching the other side to the ZIF socket.
•
Reconnect the processor fan sink cable to the
connector FN1 on the system board.

IBM NetVista Specifications

General

Category	Desktop
Model	NetVista
Processor Type	Intel Celeron
Memory Type	SDRAM
Optical Drive	CD-ROM, DVD-ROM, or CD-RW
Graphics	Integrated Intel graphics
Audio	Integrated audio
Network	10/100 Ethernet
Operating System	Windows 2000, Windows XP (Varies by model)
Expansion Slots	PCI
Ports	USB, serial, parallel, VGA, audio in/out
