IBM NetVista Hardware Maintenance Guide

Parts/Test Point Locations 121

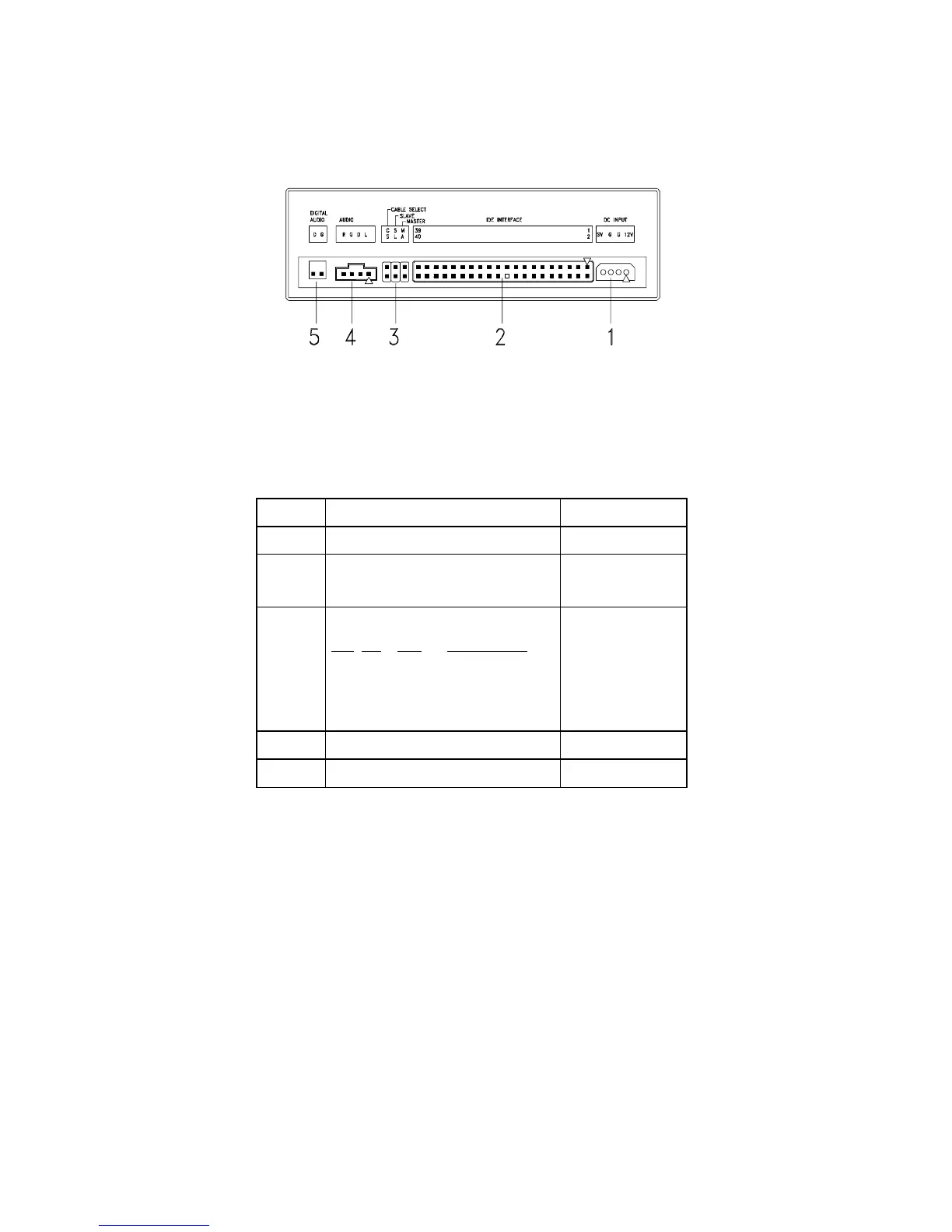

CD-ROM Drive Rear Panel Connectors
and Jumpers
NOTE:
CD-ROM drives may come with item no. 5
(digital audio output) connectors.
CD-ROM Drive Rear Panel Connectors and Jumpers
Item Function Connect to...
1 Power supply connector Power supply
2 Interface connector System board
CN12: IDE 2
3 Configuration jumper.
CS
SL MA Description
-- -- On Master
-- On -- Slave.
On -- -- Cable select
--
4 Audio line out connector System board
5 Digital audio output --

IBM NetVista Specifications

General

Category	Desktop
Model	NetVista
Processor Type	Intel Celeron
Memory Type	SDRAM
Optical Drive	CD-ROM, DVD-ROM, or CD-RW
Graphics	Integrated Intel graphics
Audio	Integrated audio
Network	10/100 Ethernet
Operating System	Windows 2000, Windows XP (Varies by model)
Expansion Slots	PCI
Ports	USB, serial, parallel, VGA, audio in/out
