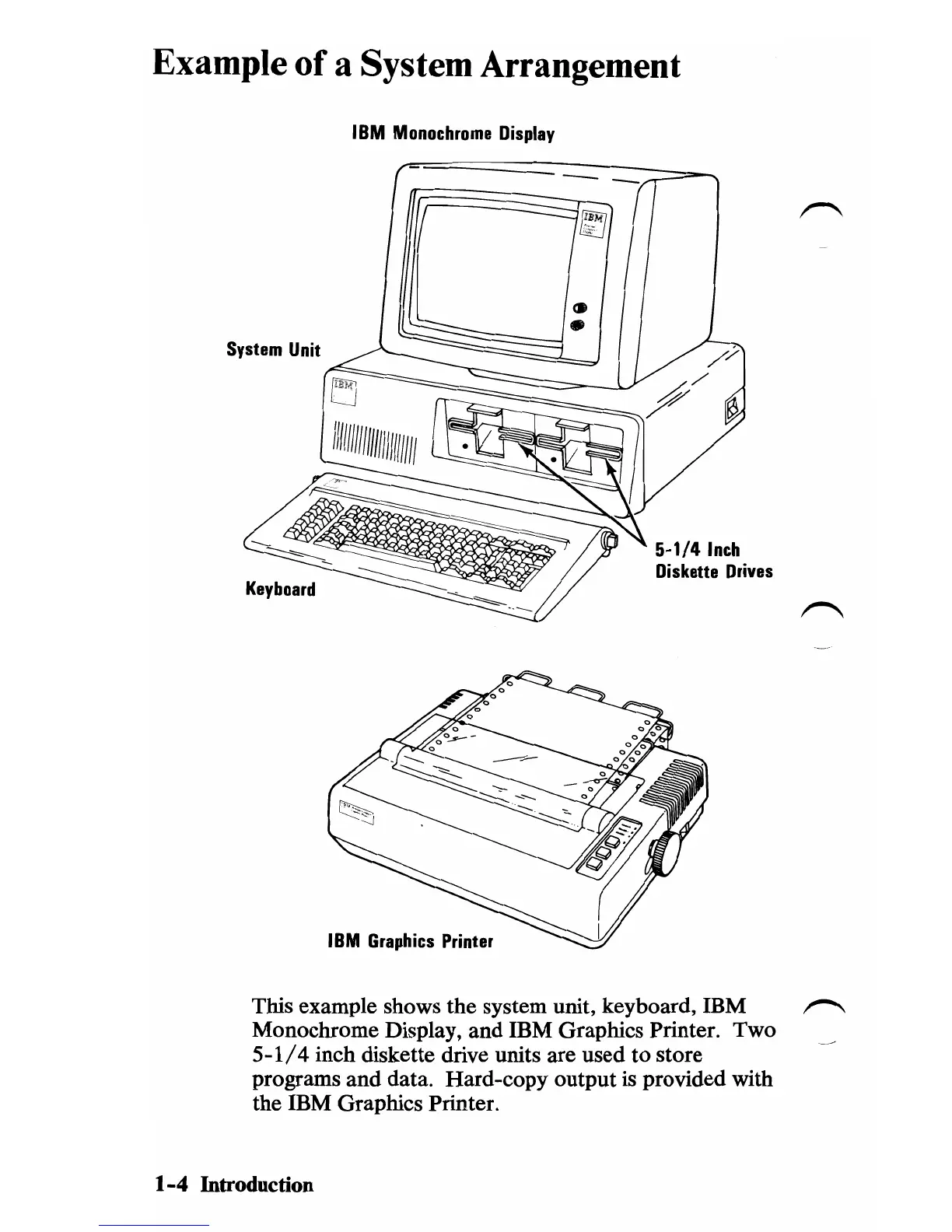

Example
of
a System Arrangement
IBM
Monochrome
Display
System
Unit
Diskette
Drives
Keyboard
IBM
Graphics
Printer
This example shows the system unit, keyboard, IBM ,,-....,
Monochrome Display,
and
IBM Graphics Printer. Two
5
-1
/4
inch diskette drive units are used to store
programs
and
data. Hard-copy
output
is provided with
the IBM Graphics Printer.
1-4 Introduction
