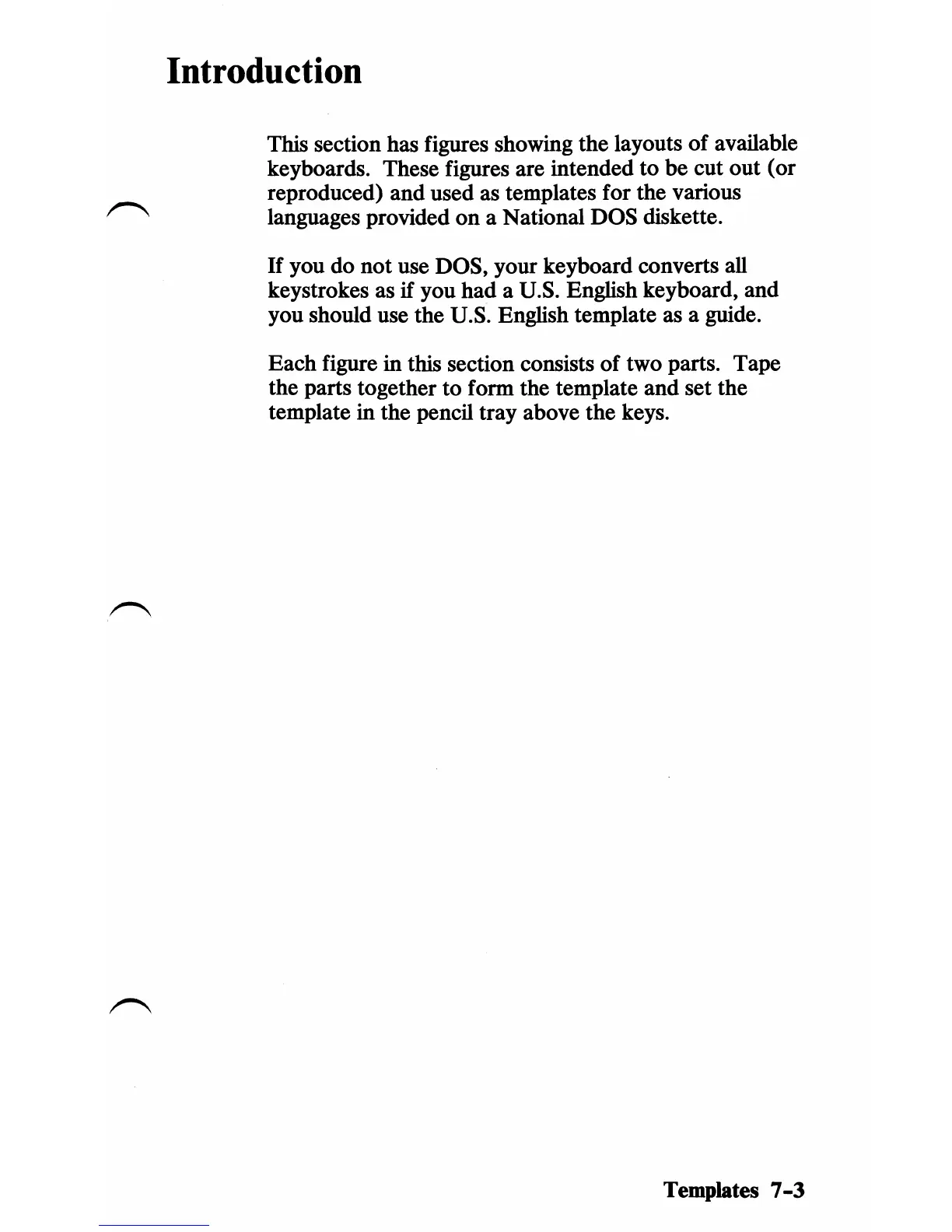

Introduction
This section has figures showing the layouts of available
keyboards. These figures are intended
to be cut out (or
reproduced) and used as templates for the various
languages provided
on a National DOS diskette.
If you do not use DOS, your keyboard converts all
keystrokes as
if you had a U.S. English keyboard, and
you should use the U.S. English template as a guide.
Each figure in this section consists of two parts. Tape
the parts together to form the template and set the
template in the pencil tray above the keys.
Templates
7-3

IBM Personal Computer Specifications

General

Manufacturer	IBM
Model	IBM Personal Computer 5150
Release Year	1981
Processor	Intel 8088
Clock Speed	4.77 MHz
RAM	16 KB - 256 KB
Graphics	MDA or CGA
Power Supply	63.5 W
Weight	21 lbs (9.5 kg)
Storage	5.25-inch floppy disk drives, optional 10 MB hard drive
Operating System	IBM PC DOS
Ports	Parallel, Serial, Cassette
