12. Install the bezel on the new disk drive:
a. Find the package that contains the new disk drive.
Attention: Disk drives are fragile. Handle with care.
b. Remove the disk drive from its static protective package.
c. Unlock the handle of the replacement disk drive by squeezing and pulling it out toward you. If
the handle is not all the way out, the disk drive will not slide into the system.

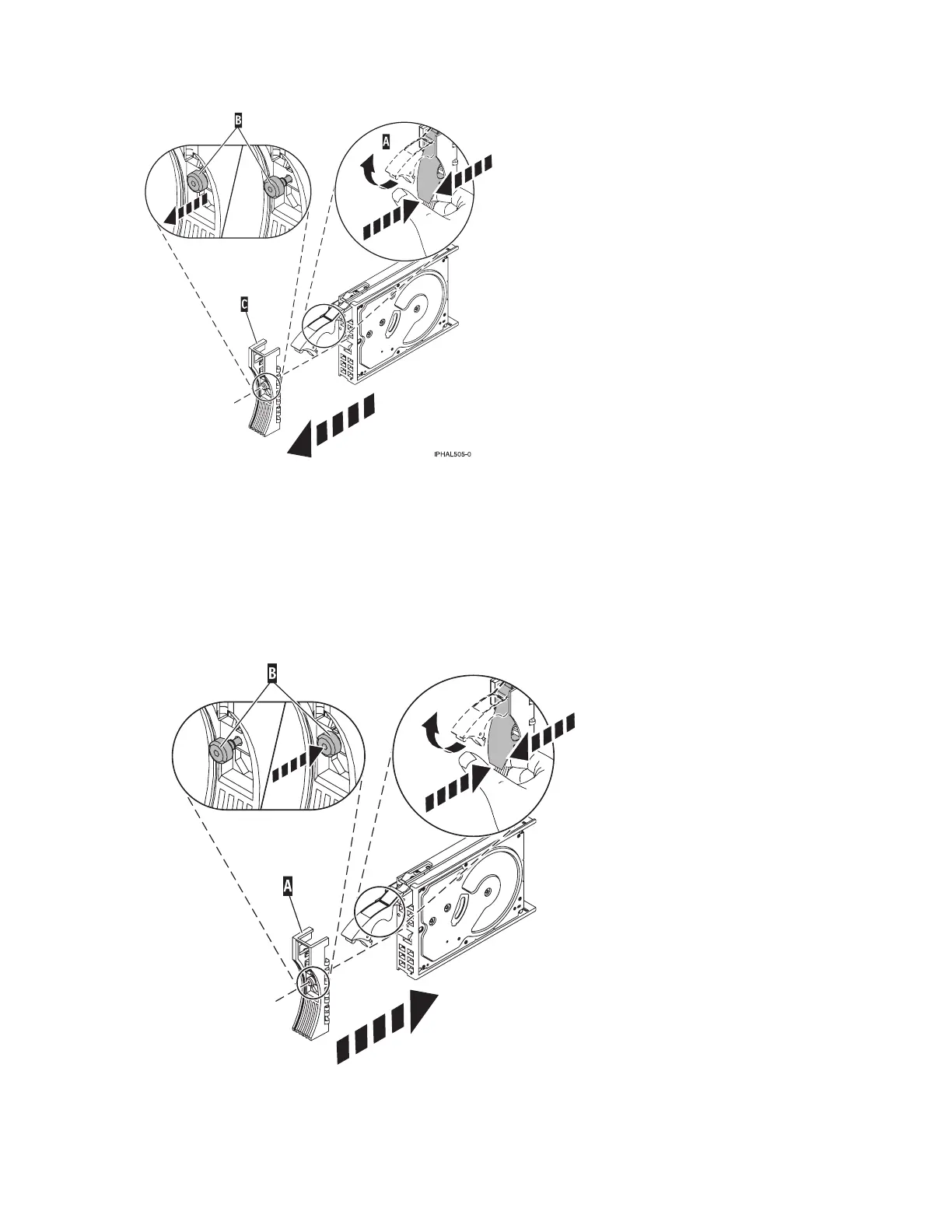

d. Attach the disk drive bezel (A) to the replacement disk drive as shown.
e. Press in and then tighten the thumbscrew (B) to secure the bezel to the disk drive.
13.
a. Return to the console and wait until the Concurrent Maintenance Results display is shown. Press
F12.
Common service procedures 87
