drive will not slide out of the system or expansion unit.
8. Support the bottom of the disk drive as you slide it out of the system or expansion unit. Do not hold
the disk drive by the handle.

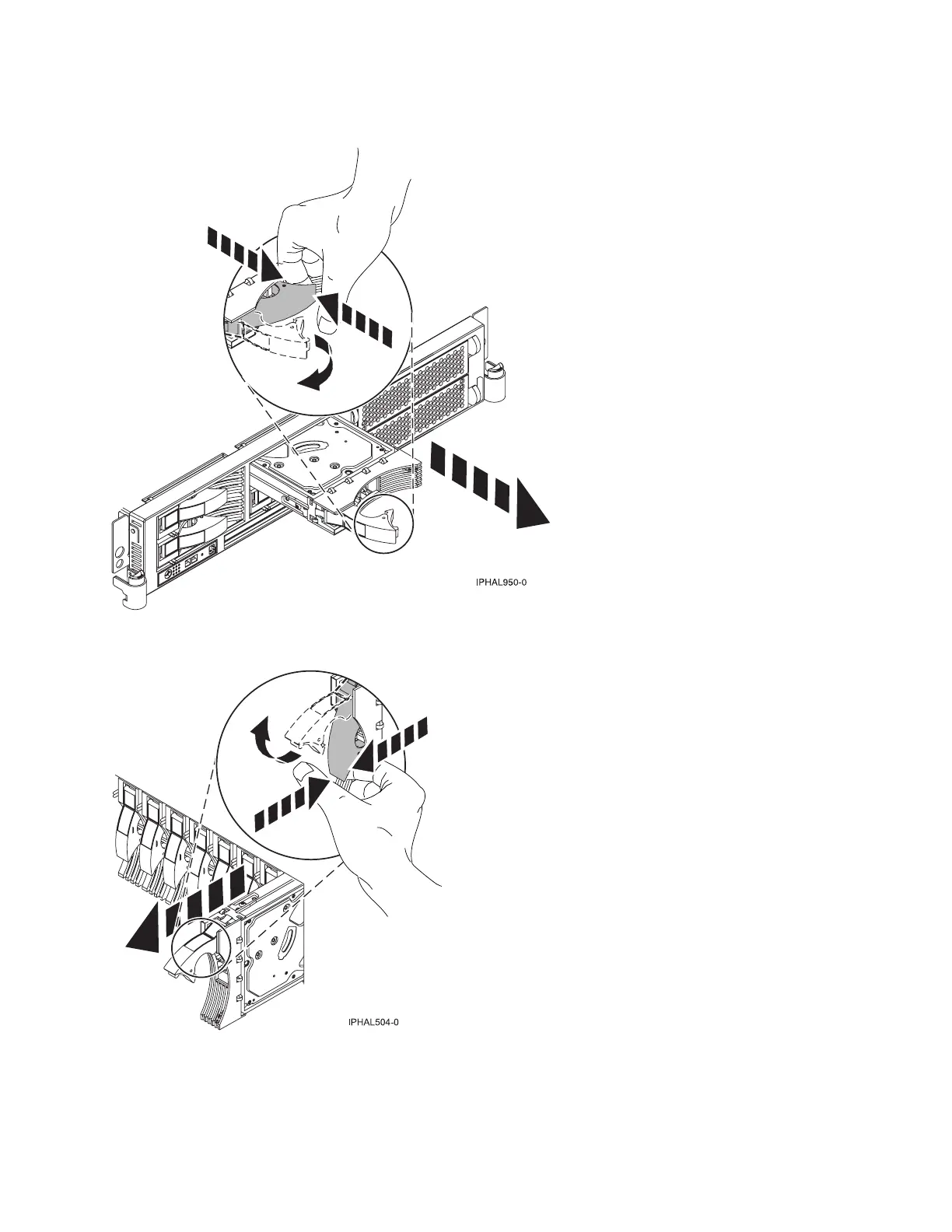

Figure 29. Removing a disk drive from the system unit
Figure 30. Removing a disk drive from the system unit
Common service procedures 93
