IBM Power System POWER7 Series User Manual

27. Connect the adapter cables.
28. Lower the PCI adapter EMC shield (A) into the closed position, close the shield latch, then close the
rear rack door.

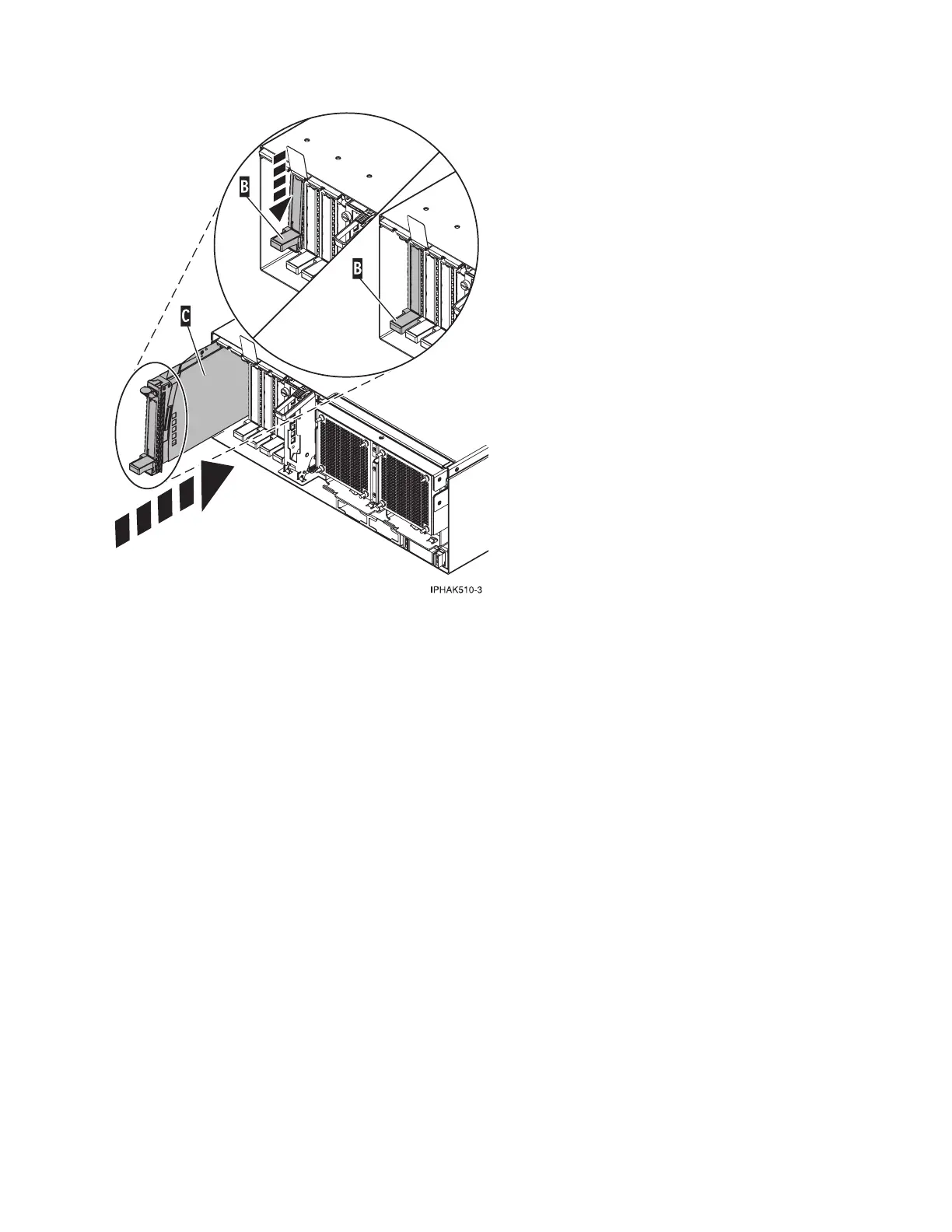

Figure 70. PCI adapter cassette removed from the system unit
Common service procedures 135

IBM Power System POWER7 Series Specifications

General

Processor	POWER7
L2 Cache	256 KB per core
L3 Cache	4 MB per core
Memory Type	DDR3
Operating System	AIX, IBM i, Linux
Virtualization	PowerVM
Processor Cores	4, 6, or 8
Form Factor	Rack
Release Date	2010
