IBM Power Systems 7063-CR1 User Manual

48.
5. Grip the heat sink and remove it by lifting it straight up as shown in Figure 49.
6. Place the heat sink upside down on a clean surface.

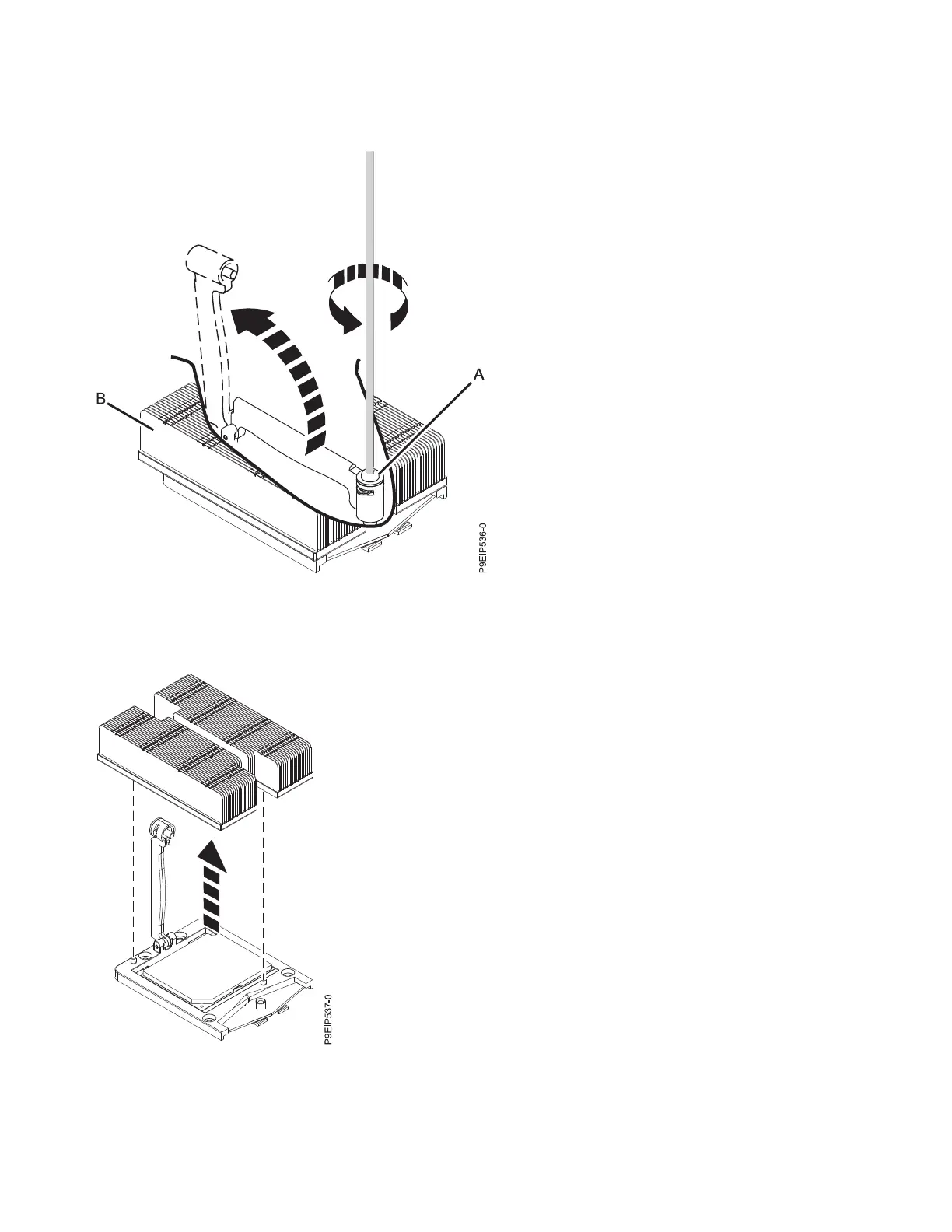

Figure 48. Loosening the load arm screw of the heat sink
Figure 49. Removing the heat sink
48 Power Systems: Servicing the 7063-CR1 Hardware Management Console system
