SAS Device Cables 2-7

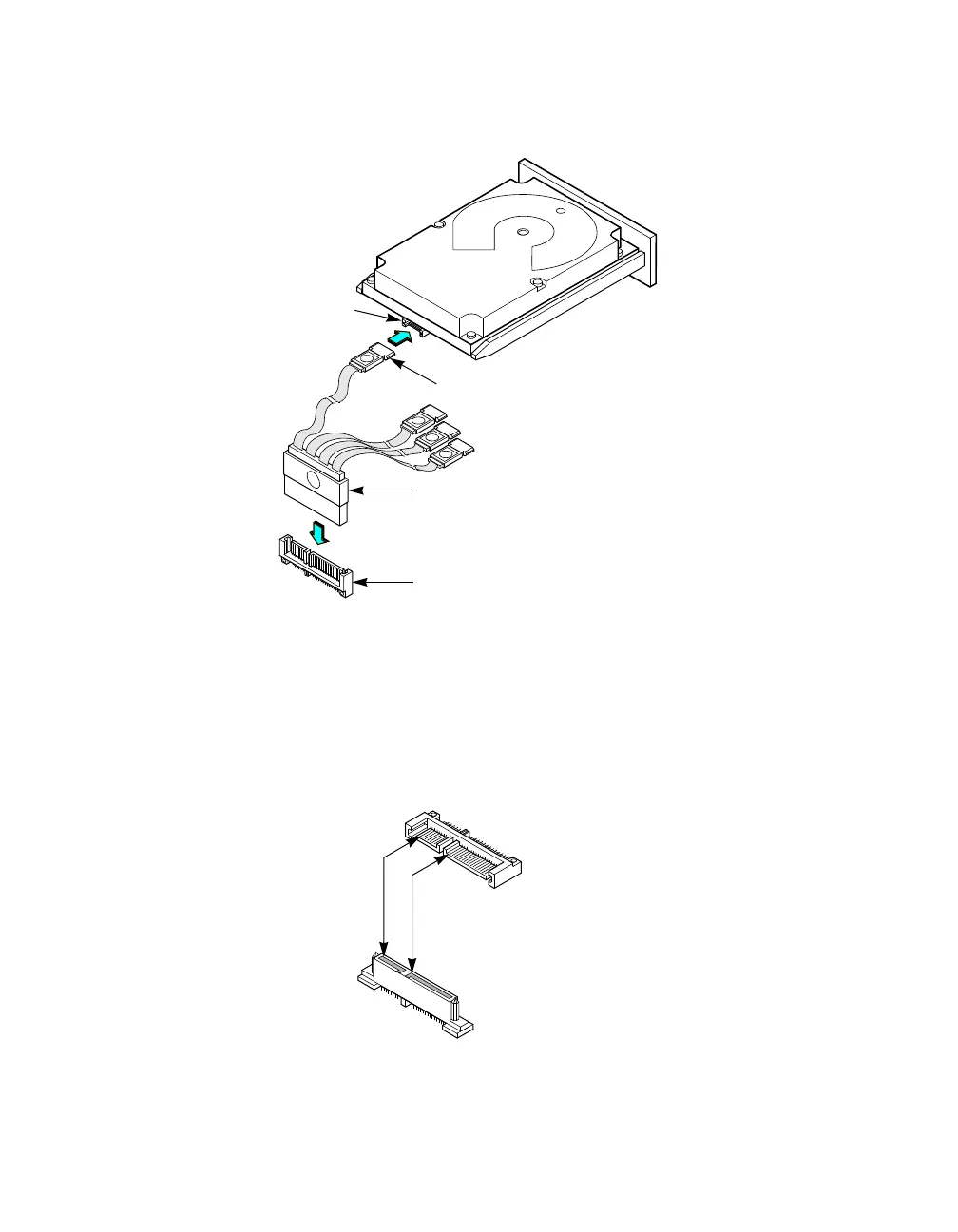

Figure 2.2 Internal SAS Cable for Connection to SAS Physical
Drives or SATA II Physical Drives
The following figure displays the SATA II device plug connector used to
connect a controller with internal connectors to the host receptable
connector on a backplane. A SATA II connector consists of a signal
connector and a power connector.
Figure 2.3 SATA II Connectors
Physical Drive
Connector
Serial Signal
Cables
RAID Controller to HDD
4-Lane Internal
Connector
SFF 8484
Breakout Cable
Device Plug
Connector
Host Receptacle
Connector
Serial ATA
Signal Connector
(pin 1)
Serial ATA
Power Connector
(pin 1)
