5-2 Installing a ServeRAID M5000 Series Battery Assembly
5.1 Installing the ServerRAID M5000 Series Battery
Assembly on a Controller
The ServeRAID M5000 Series Battery Assembly is compatible with
systems that offer auxiliary power. Battery charging and recharging take
place automatically. The battery assembly mounts directly to the
controller using a small board-to-board connector (daughtercard).
The following figure displays the top view and the bottom view of the
card. (The “top” side is the side you can see after you install the battery
assembly on the controller.) Note that this unit combines a battery pack
with a daughtercard.

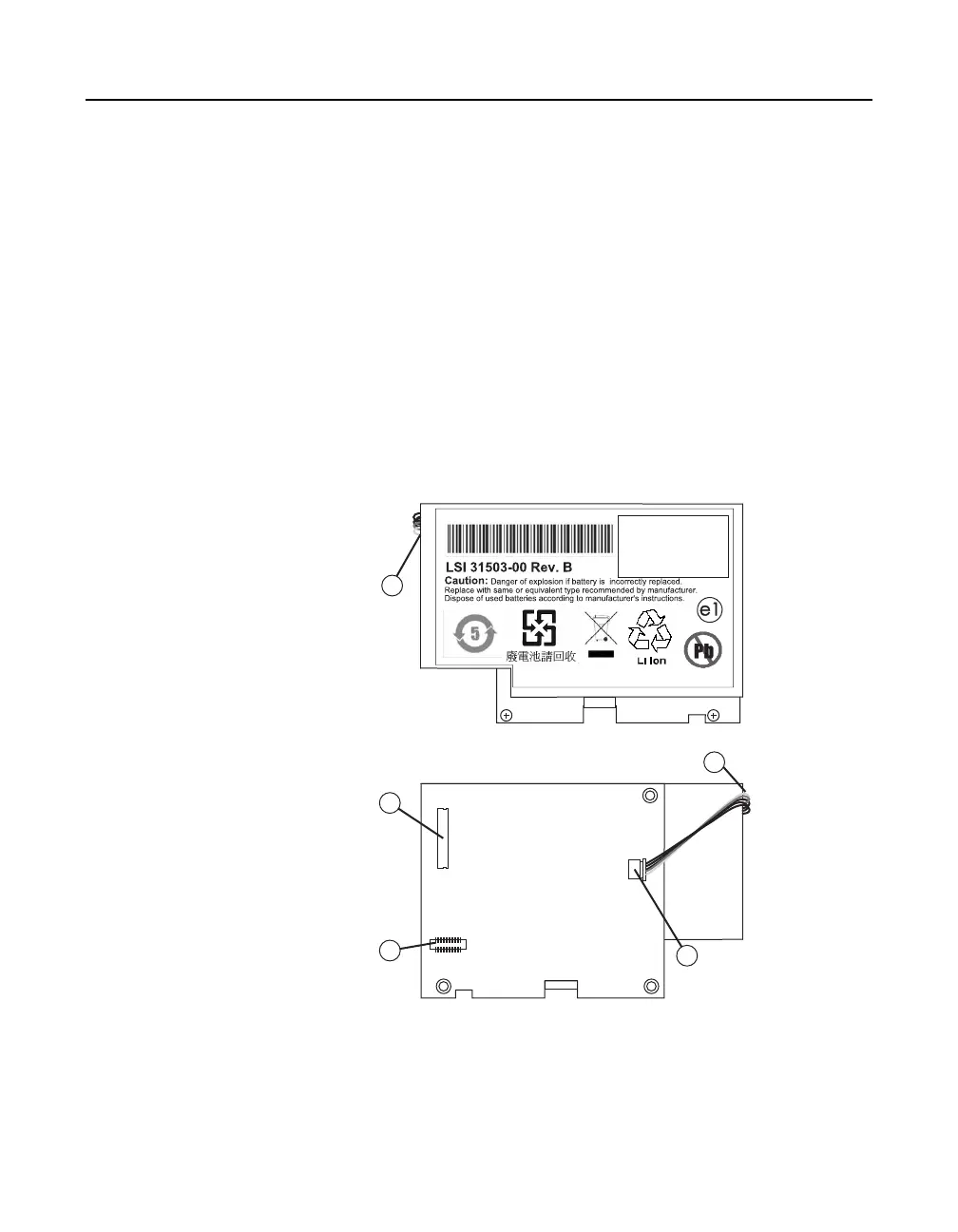

Figure 5.1 ServeRAID M5000 Series Battery Assembly
1 - J4 battery pack harness connector
2 - J5 board-to-board connector
85021-05
