6-4 Using the ServeRAID M5000 Series Battery Assembly
5. Click Present in the Battery Backup field.
The Battery Module screen appears, as shown in the following
figure. This screen contains the following information:
– Battery information
– Design information
– Capacity information
– Auto Learn properties

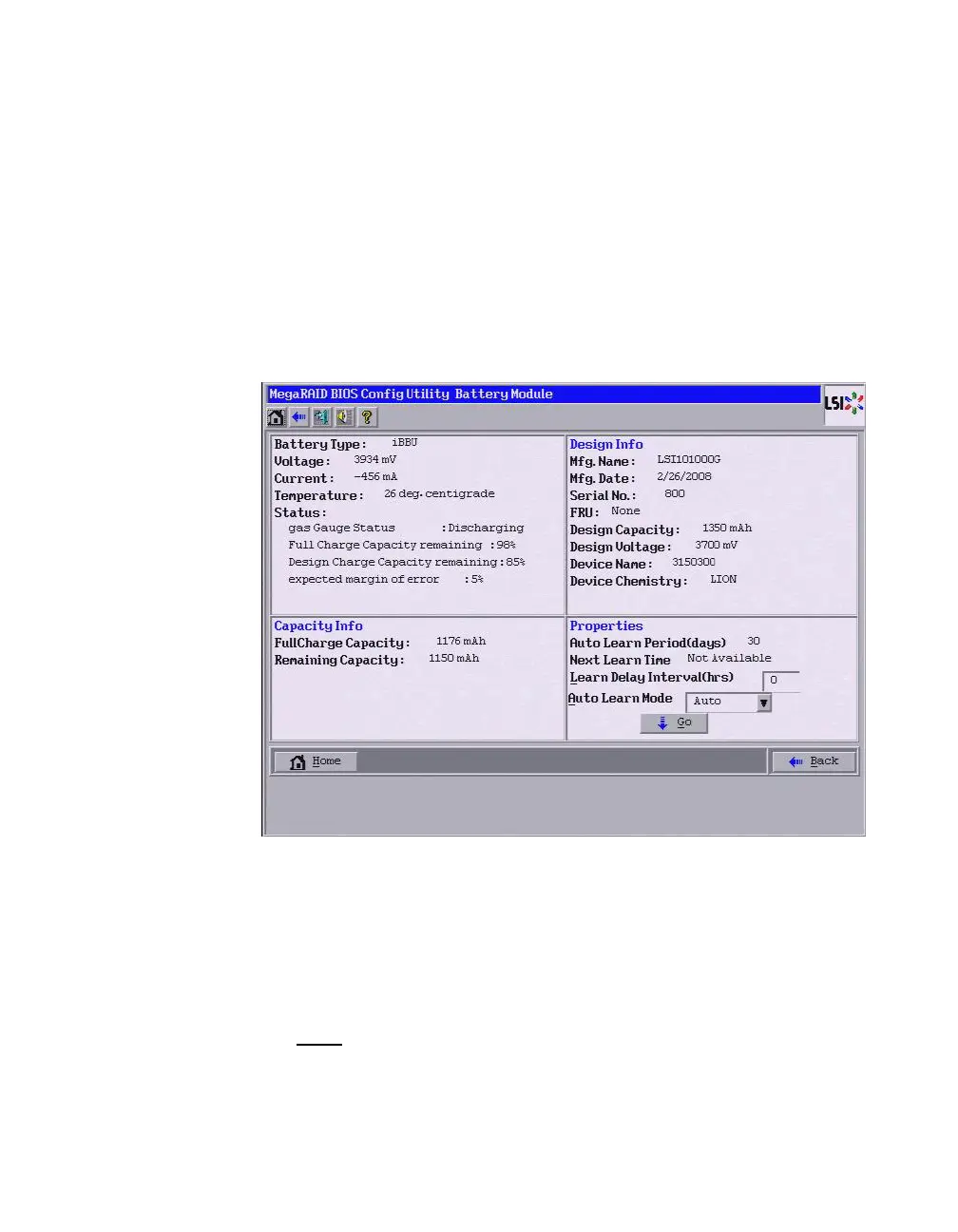

Figure 6.3 Battery Module Screen
Most of the Battery Module properties are view-only and are self-
explanatory.
In the lower right corner of the screen are the Auto Learn options. A
learning cycle is a battery calibration operation performed by the
controller periodically to determine the condition of the battery. You
can change the learn delay interval and the auto learn mode.
Note:
IBM recommends leaving the the learn delay interval and
the auto learn mode at their default settings.
