IBM Storwize V5000 Gen2 User Manual

▌1▐ Power cable connector for PSU 2
▌2▐ Power cable retention clamps
▌3▐ Fan module
▌4▐ Fan release latch
▌5▐ Fan fault indicator
▌6▐ Expansion canister
▌7▐ SAS ports and indicators
▌8▐ Expansion canister indicators
▌9▐ Power cable connector for PSU 1
Support rails
Figure 25 on page 44 shows the support rails for the expansion enclosure. The
support rails are packaged separately from the expansion enclosure.
svc01010
8
77
8
1
2
4
5
3
6
9

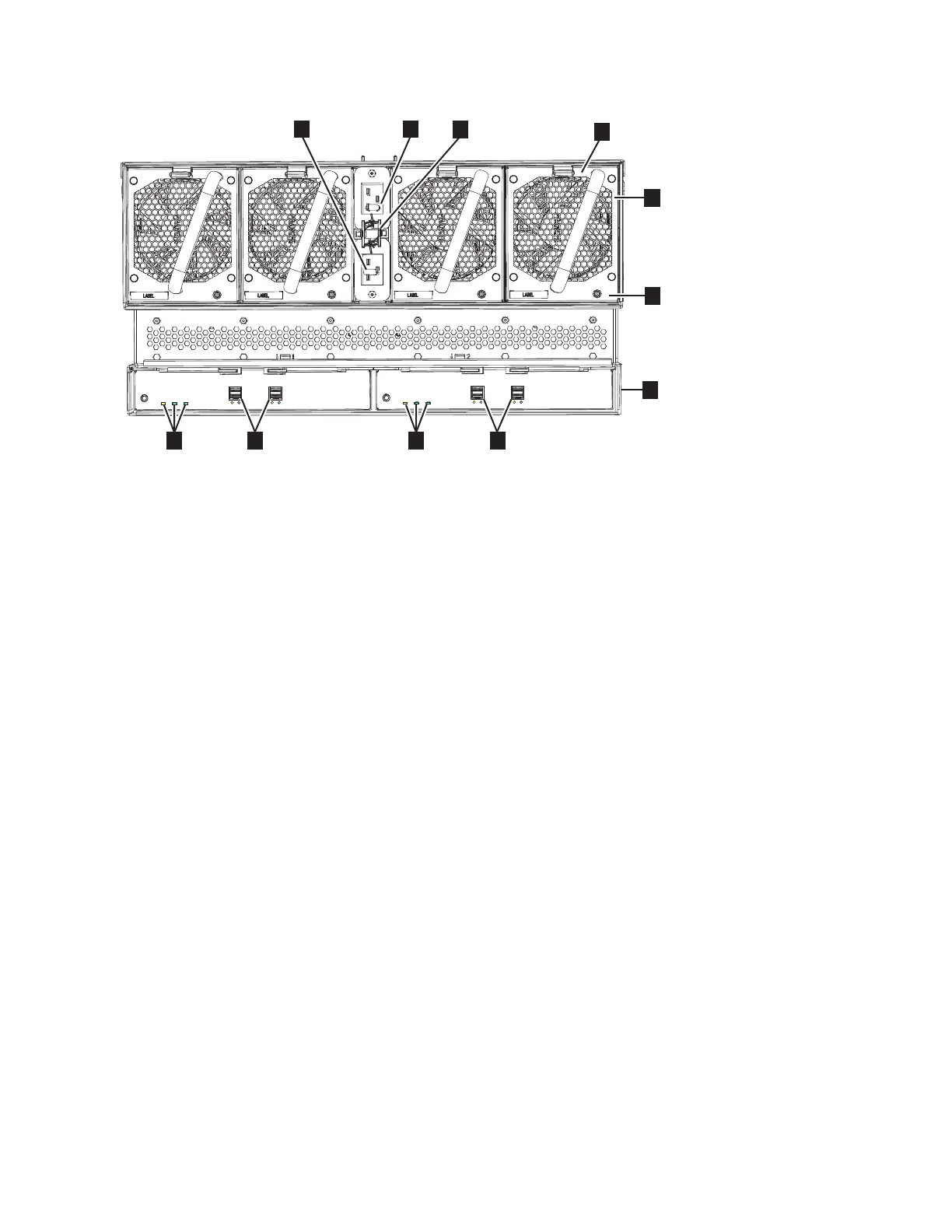

Figure 24. Features on the rear of the 2077-92F expansion enclosure
Chapter 2. Installing the system hardware 43
