5. Place the cover in a safe location.
Replace the cover
6. To reinstall the cover, or replace it with one from FRU stock, follow the
procedure in “Installing or replacing the top cover: 2077-92F” on page 71.
Installing or replacing the support rails: 2077-92F
You must install the support rails before you can install a 2077-92F expansion
enclosure in a rack.
Procedure
1. Locate the hardware that is used to install the rails, including the M4xL6 and
M5xL13 screws. Set the hardware, which is shown in Figure 32, aside for use
later in the installation process.

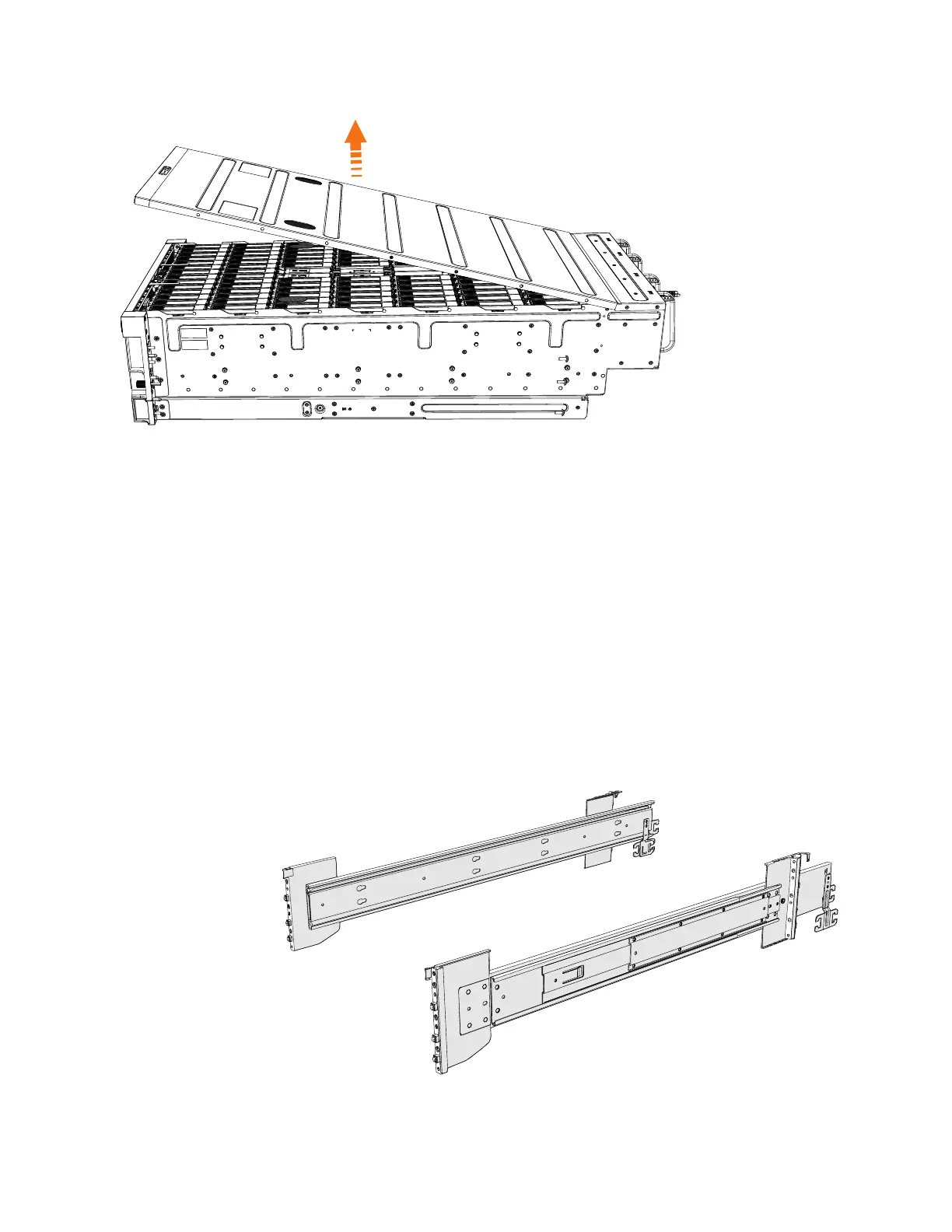

Figure 31. Removing the 2077-92F cover
Figure 32. Support rails
Chapter 2. Installing the system hardware 49
