Cable management arm

The cable management arm (CMA), which consists of an upper and lower

assembly, are packaged separately from the expansion enclosure. As Figure 26

shows, each CMA assembly is attached to the rear end of the support rails.

Unpacking and installing the enclosure: 2077-92F

Before you unpack and install the 2077-92F expansion enclosure, ensure that you

review and follow the installation checklist and safety notices.

svc00962

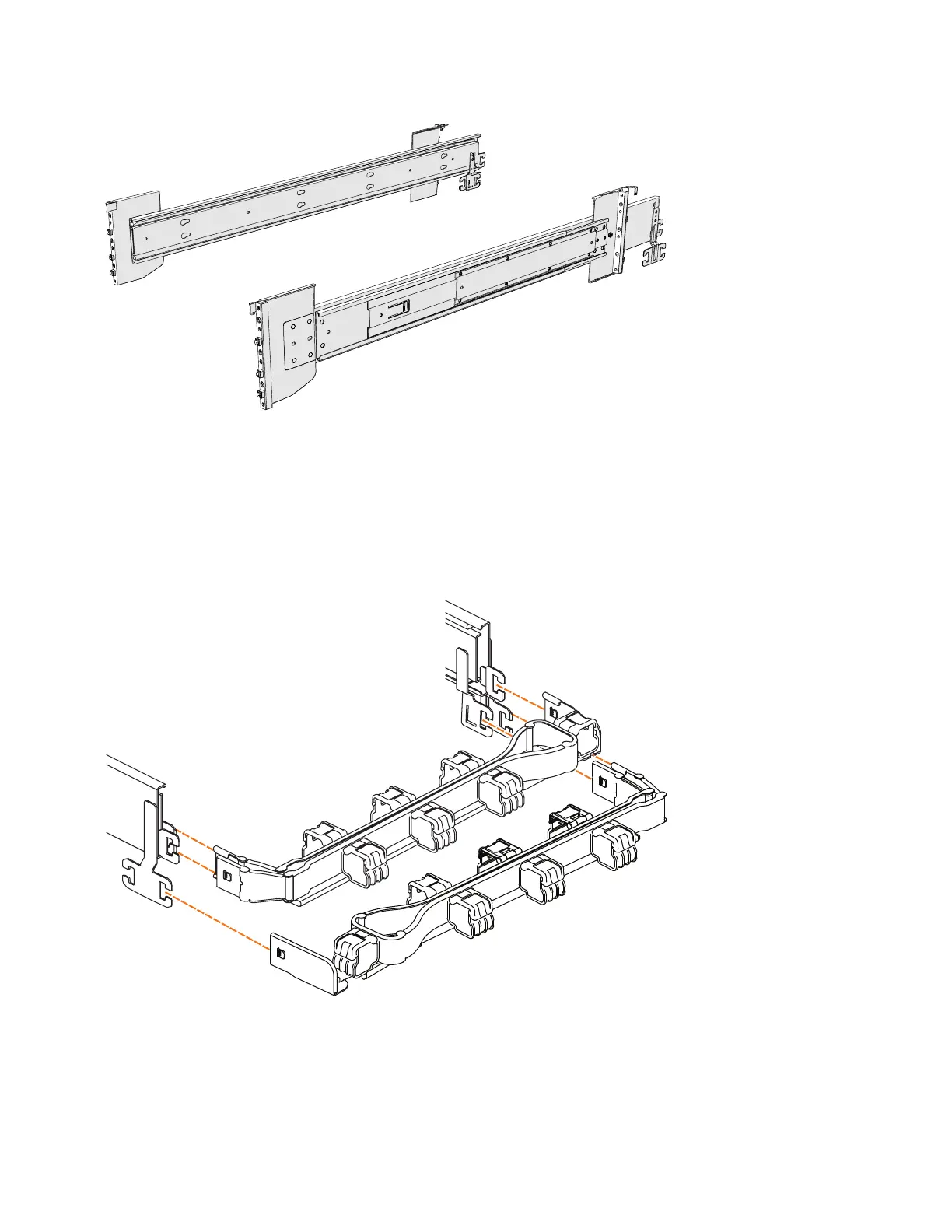

Figure 25. 2077-92F support rails

svc01034

Figure 26. 2077-92F CMA assemblies

44 Storwize V5000 Gen2: Quick Installation Guide
