IBM Storwize V5000 Gen2 User Manual

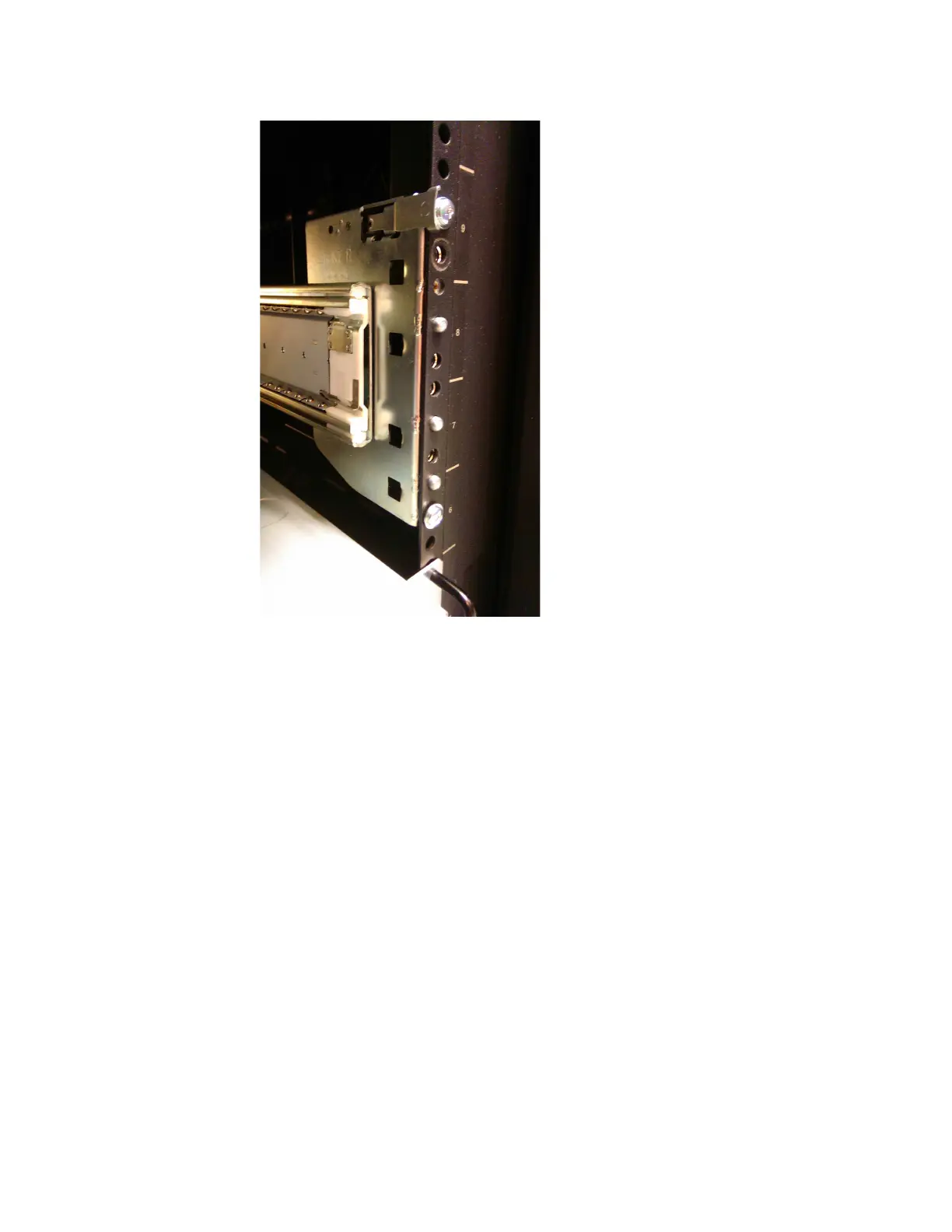

7. Repeat steps 5 on page 50 through 6 on page 51 to install the opposite rail.
8. Install the expansion enclosure in the rack, as described in “Installing or
replacing an expansion enclosure in a rack: 2077-92F.”
Installing or replacing an expansion enclosure in a rack:
2077-92F
Use the following procedure to place the 2077-92F expansion controller in a rack
during the installation process. To complete some service tasks, you might also
need to slide the enclosure back in to the rack.
svc01022
Figure 37. Example of the required rack space
52 Storwize V5000 Gen2: Quick Installation Guide

IBM Storwize V5000 Gen2 Specifications

General

Model	Storwize V5000 Gen2
Storage Type	Hybrid Flash Array
Form Factor	2U
Maximum Drives	240
Operating System	IBM Spectrum Virtualize
Drive Types	SSD
RAID Levels	0, 1, 5, 6, 10
Host Interface	8 Gbps Fibre Channel (FC), 16 Gbps Fibre Channel (FC), 10 Gbps iSCSI, 12 Gbps SAS
Drive Bays	24
Cache Memory	Up to 64 GB
Power Supply	Redundant, hot-swappable power supplies
Virtualization	Yes
