IBM Storwize V7000 Unified User Manual

v A File module 1
v B File module 2
v C Storwize V7000 control enclosure
v 1 File module1 - Fibre Channel port 1
v 2 File module 1 - Fibre Channel port 2
v 3 File module 2 - Fibre Channel port 1
v 4 File module 2 - Fibre Channel port 2
v 5 Upper node canister - Fibre Channel port 1
v 6 Upper node canister - Fibre Channel port 2
v 7 Lower node canister - Fibre Channel port 1
v 8 Lower node canister - Fibre Channel port 2
Note: If you want this control enclosure to communicate with other Storwize
V7000 control enclosures, storage controllers, the Storwize V7000 Unified or block
hosts, then connect the Fibre cables from your Fibre Channel switch to the
1
2
3
4
5
6
1
2
3
4
5
6
if s00067
CAUT IO N
CAUT IO NCAUT IO N
CAUT IO N
Disconnect all
supply power for
complete isolation
Disconnect all
supply power for
complete isolation
Disconnect all
supply power for
complete isolation
Disconnect all
supply power for
complete isolation
2
1
A
3
4
B
C
7
8
5
6

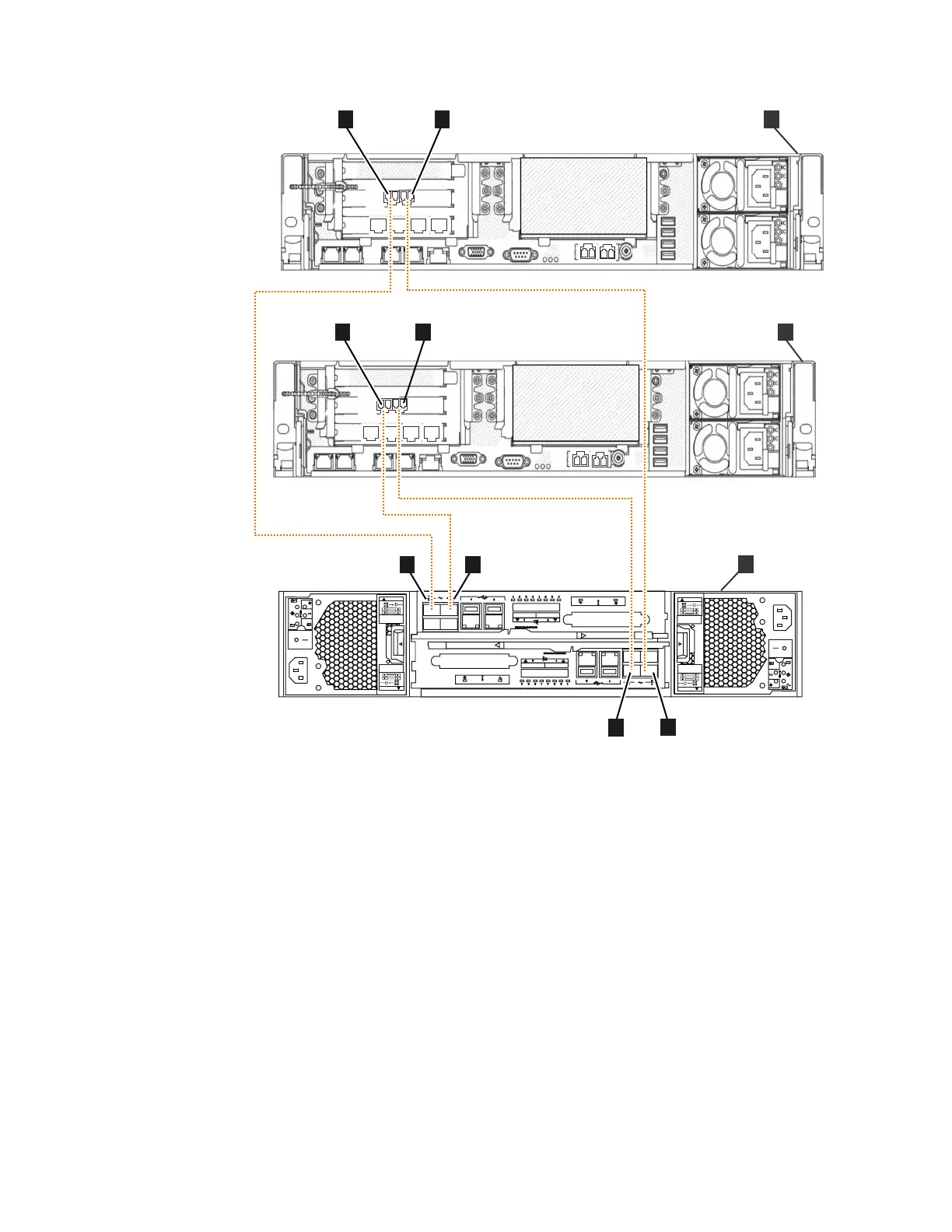

Figure 55. Connecting the file modules to the Storwize V7000 Gen1 control enclosure using
Fibre Channel cables
96 IBM Storwize V7000 Unified: Adding Storwize V7000 File Modules to an existing Storwize V7000 system 2073-720

IBM Storwize V7000 Unified Specifications

General

Model	IBM Storwize V7000 Unified
Storage Type	Unified Storage
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Drive Types Supported	SAS, SSD
Maximum Drives	504
Network Protocols	iSCSI, FC, FCoE
Drive Bays	24 per enclosure
Host Interface	8 Gb FC, 1 Gb/10 Gb iSCSI
File Protocols	NFS, CIFS
Block Protocols	iSCSI, Fibre Channel
Type	Unified Storage
Maximum Host Ports	16
Operating System Support	VMware, Microsoft Windows, Linux, AIX
Data Services	Thin provisioning, replication
Power Supply	Redundant power supplies
Host Interfaces	8 Gbps Fibre Channel, 10 Gbps iSCSI, 1 Gbps iSCSI
