IBM System Storage DS3300 User Manual

One dual-controller DS3300 and one storage expansion
enclosure
To cable one dual-controller DS3300 to one storage expansion enclosure, connect
them as shown in Figure 17.
One dual-controller DS3300 and two storage expansion
enclosures
To cable one dual-controller DS3300 and two storage expansion enclosures,
connect them as shown in Figure 18.
DS3300
SAS cable
SAS cable
EXP3000
To DS3300 RAID
controller A
To DS3300 RAID
controller B
RAID controller A RAID controller B

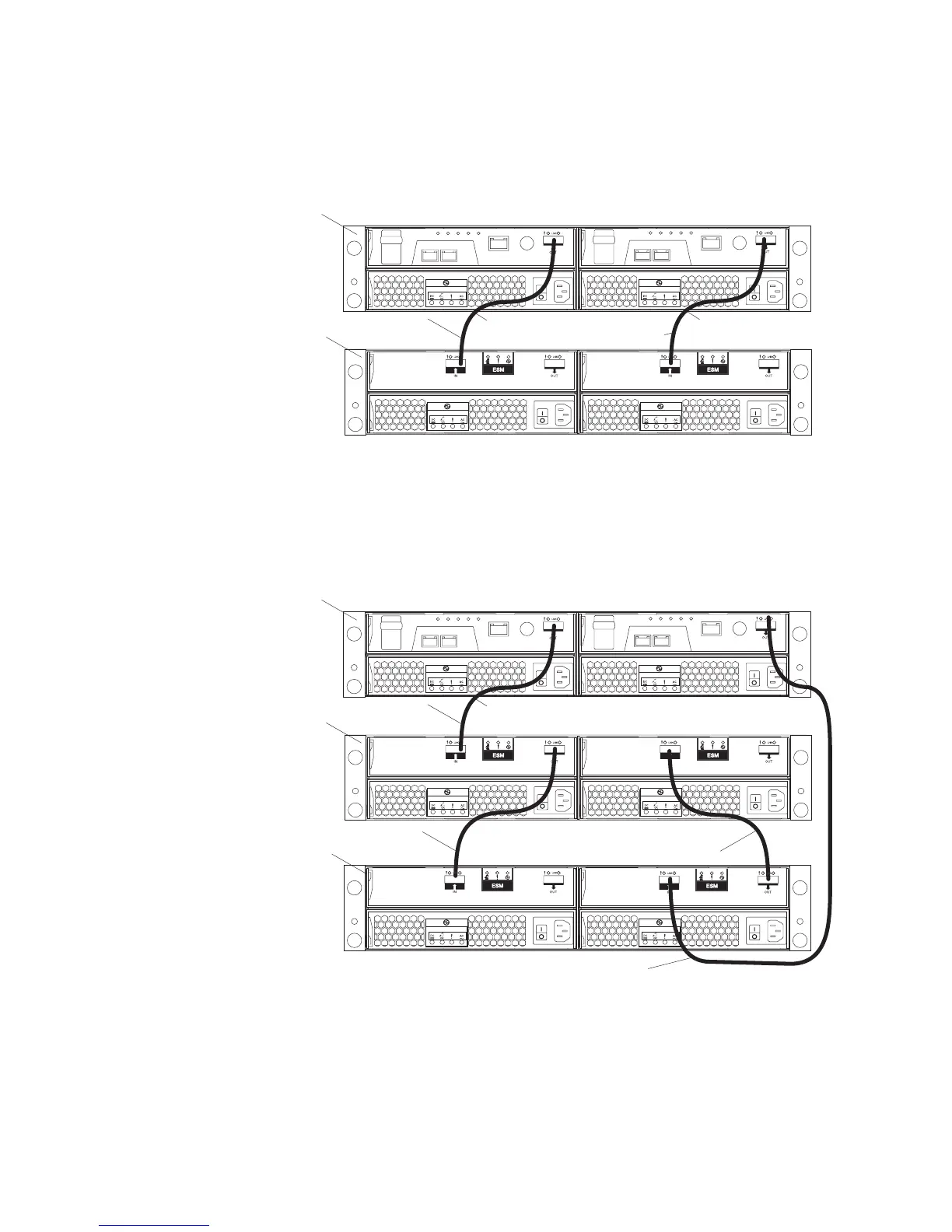

Figure 17. One dual-controller DS3300 and one storage expansion enclosure
DS3300
SAS cable
SAS cable
EXP3000
To DS3300 RAID
controller A
To DS3300 RAID controller B
SAS cable
SAS cable
EXP3000
RAID controller A RAID controller B
Figure 18. One dual-controller DS3300 and two storage expansion enclosure
Chapter 3. Cabling the storage subsystem 29
