The iSCSI LEDs are showin in the following illustration.
iSCSI speed (amber)
When this LED is lit, it indicates that the port is operating at 1000 Mbps.
When this LED is off, it indicates that the speed of the port is 100 Mbps.
iSCSI activity (green)
When this LED is lit, it indicates that the link is established with the
controller. When this LED is flashing, there is activity on this port. When this
LED is off, no link is established with this port.
iSCSI speed
iSCSI speed
iSCSI activity
iSCSI activity

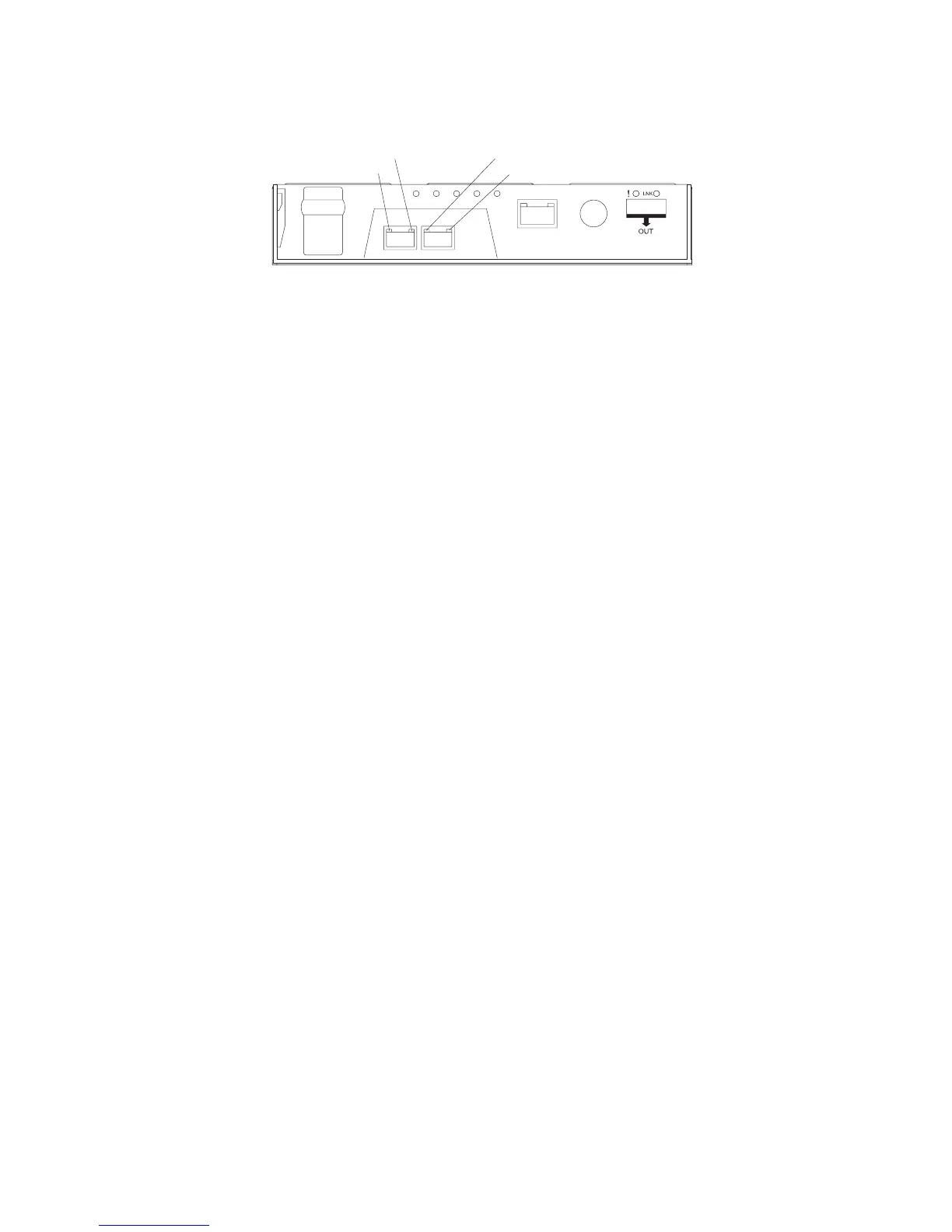

Figure 34. iSCSI LEDs
