IBM System x3250 M4 User Manual

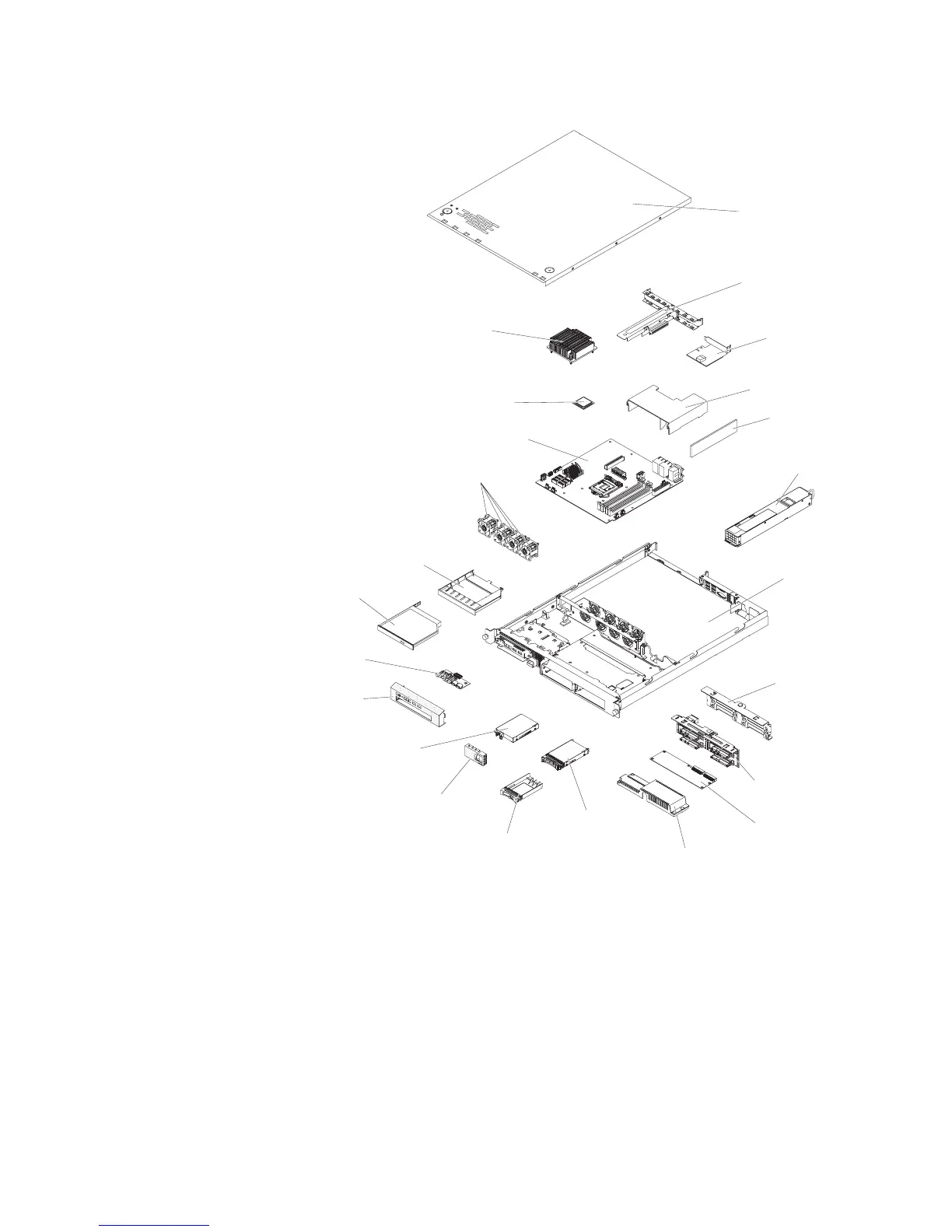

Model with redundant power supply:
Cover
PCI riser card
assembly
-
ServeRAID BR10il
v2 adapter some
models
-
(
)
Air baffle
DIMM
Chassis
2.5-inch simple-
swap hard disk
drive backplate
(some models)
2.5-inch hot-swap
hard disk drive filler
Front bezel
Operator information
panel assembly
DVD drive
Fans
System board
Microprocessor
Heat sink
2.5-inch hot-swap
hard disk drive
backplane
(some models)
2.5-inch hot-swap
hard disk drive
(some models)
2.5-inch hard
disk drive filler
2.5-inch simple-
swap hard disk
drive(some
models)
DVD drive filler
Hot-swap
power supply
Safety 240VA cover
Paddle card
Blue on a component indicates touch points, where you can grip the component to
remove it from or install it in the server, open or close a latch, and so on.
Orange on a component or an orange label on or near a component indicates that
the component can be hot-swapped, which means that if the server and operating
system support hot-swap capability, you can remove or install the component while
the server is running. Orange can also indicate touch points on hot-swap
components. See the instructions for removing or installing a specific hot-swap
component for any additional procedures that you might have to perform before you
remove or install the component.
Chapter 2. Installing optional devices 19

IBM System x3250 M4 Specifications

General

Processor	Intel Xeon E3-1200 v2 series
Max Processors	1
Memory Slots	4
Network Interface	2 x Gigabit Ethernet
Memory	Up to 32 GB
Storage	Up to 4 x 3.5-inch or 8 x 2.5-inch drives
RAID Support	RAID 0, 1, 10
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Chipset	Intel C204
