System-board internal connectors

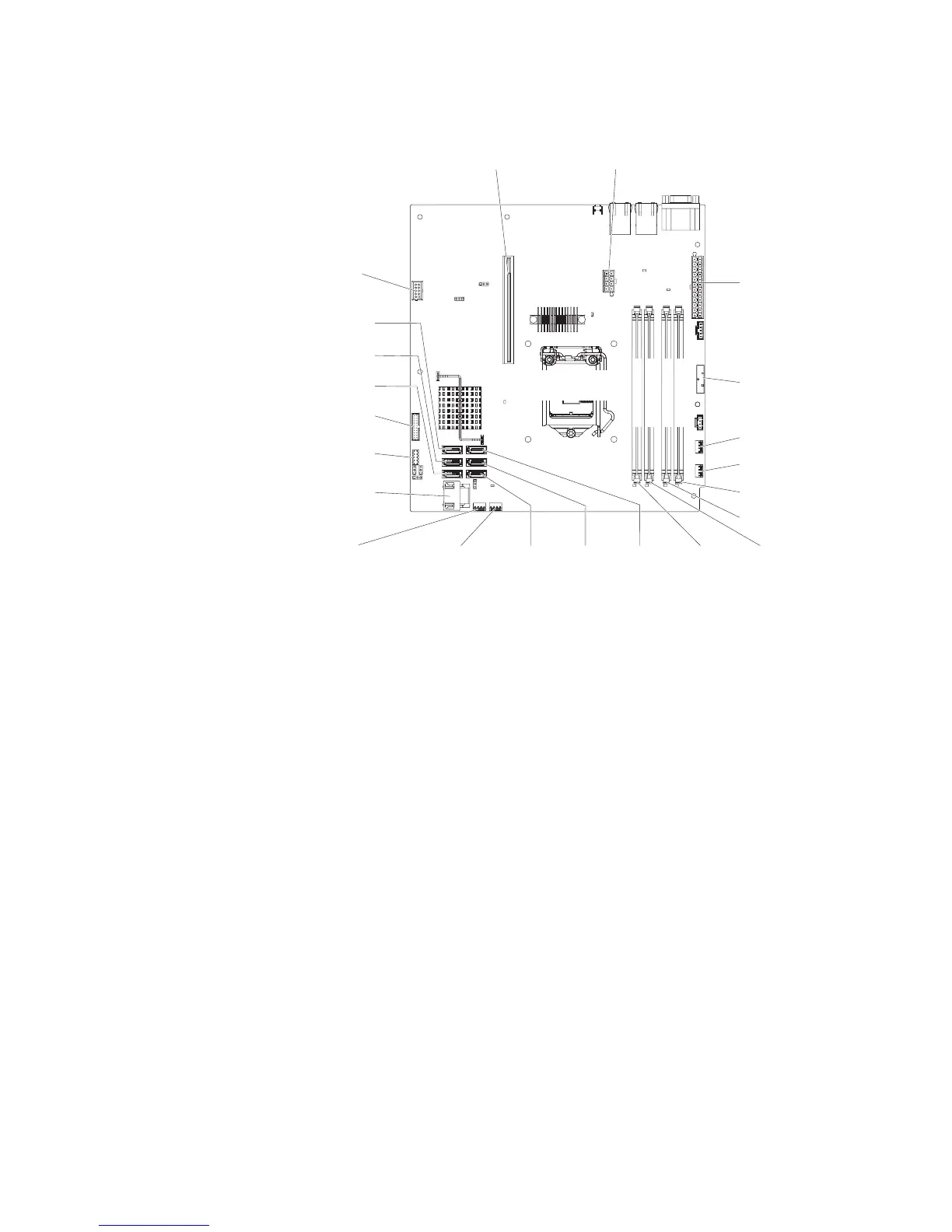

The following illustration shows the internal connectors on the system board.
DIMM 1 DIMM 2 DIMM 3 DIMM 4
Microprocessor
Power 2
Battery
Fan 4 connector
Fan 3 connector
DIMM 1
DIMM 2
DIMM 3DIMM 4Fan 2 connectorFan 1 connector
SATA 2 SATA 1 SATA 0
SATA 3
SATA 4
SATA 5
Operator information
panel connector
Front USB assembly
connecotr
USB hypervisor key
connector
PCI riser connector
Power 1
SAS backplane
configuration
connector
20 IBM System x3250 M4 Type 2583: Installation and User’s Guide

IBM System x3250 M4 Specifications

General

Processor	Intel Xeon E3-1200 v2 series
Max Processors	1
Memory Slots	4
Network Interface	2 x Gigabit Ethernet
Memory	Up to 32 GB
Storage	Up to 4 x 3.5-inch or 8 x 2.5-inch drives
RAID Support	RAID 0, 1, 10
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Chipset	Intel C204
