Attention: PCI expansion-slot covers must be installed on all vacant slots.
This maintains the electronic emissions standards of the server and ensures
proper ventilation of server components.
Riser-card
assembly
Expansion slot 1
Expansion slot 2
Adapter
Adapter
Expansion-slot cover
Expansion-slot cover
6. Touch the static-protective package that contains the new ServeRAID adapter
to any unpainted surface on the outside of the server; then, grasp the adapter
by the top edge or upper corners of the adapter and remove it from the
package.
7. Take the signal cable that is attached to the drive backplane and connect it to
the ServeRAID adapter.

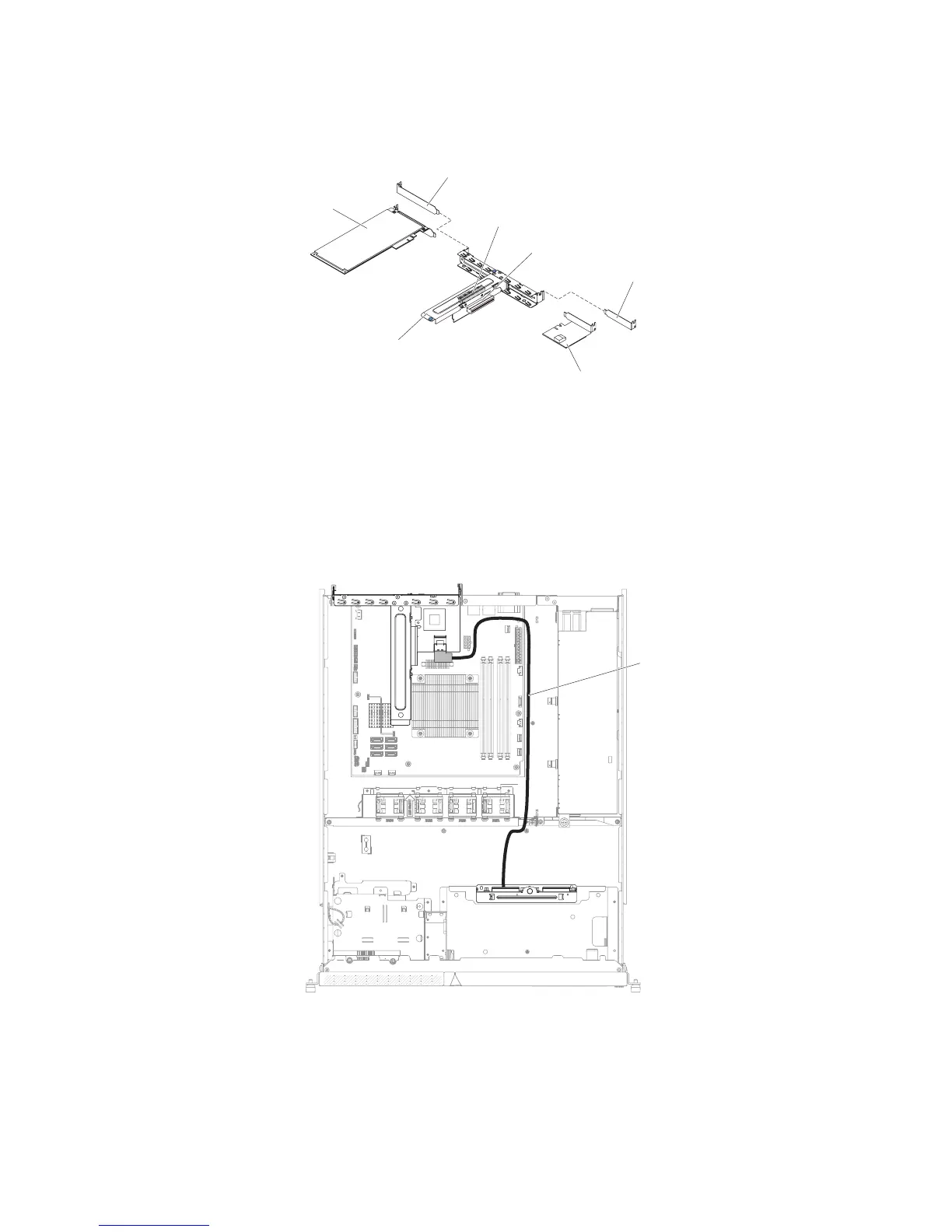

v If you install a ServeRAID adapter in slot 1 on the PCI riser-card assembly,
route the signal cable from the drive backplane as shown in the following
illustration.
SAS/SATA
signal cable
v If you install a ServeRAID-M1050 or ServeRAID-M5014 adapter in slot 2 on
the PCI riser-card assembly, route the signal cable from the drive backplane
through the fan cage hole on the left of fan 1 as shown in the following
illustration. Connect the signal cable to Port 0 on the ServeRAID adapter.
42 IBM System x3250 M4 Type 2583: Installation and User’s Guide
