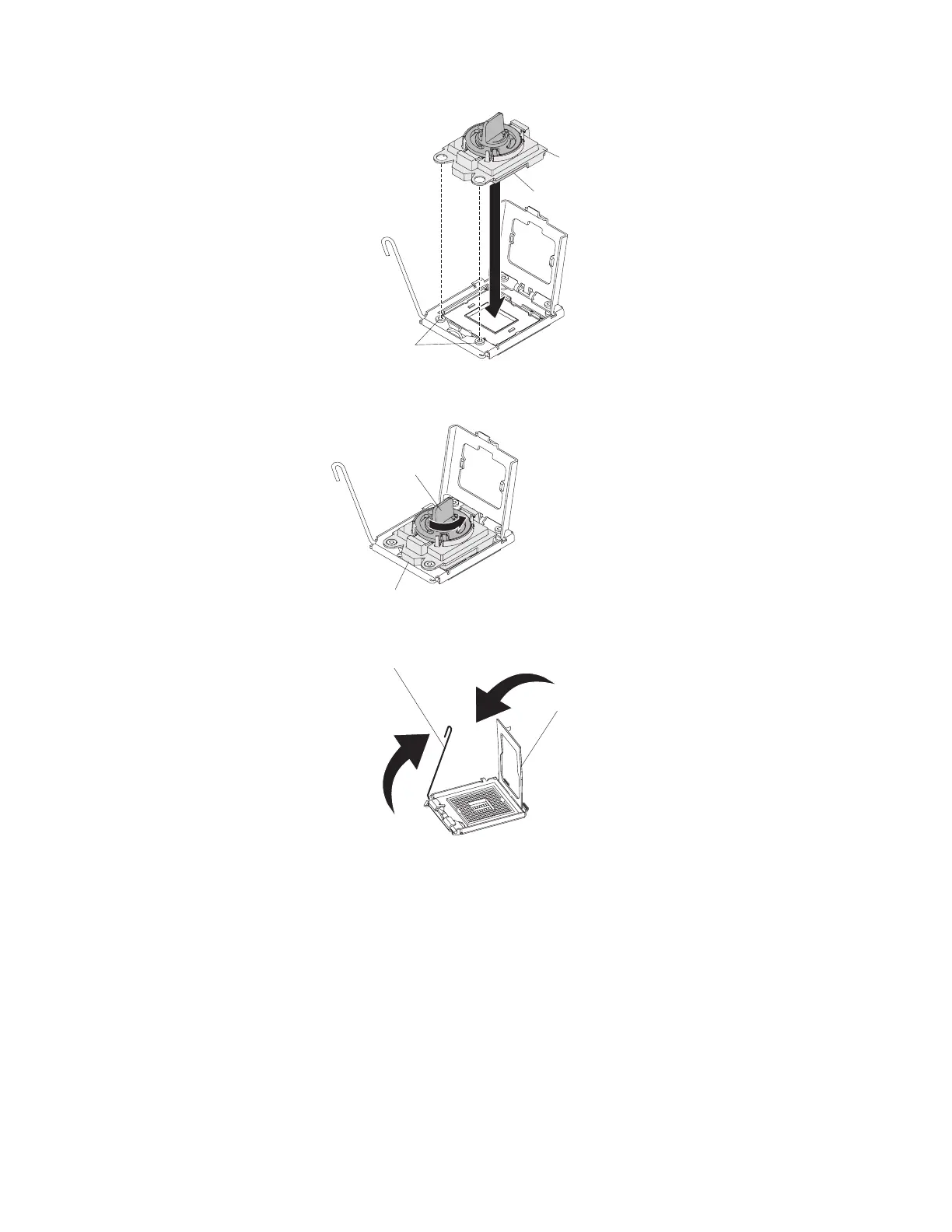

Installation tool
Alignment pins
Microprocessor
h. Twist the handle on the microprocessor tool counterclockwise to insert the
microprocessor into the socket.
Installation tool
Handle
10. Close the microprocessor bracket frame; then, close the microprocessor
retention latch and lock it securely in place.
Microprocessor
bracket frame
Microprocessor
retention latch
11. Close the microprocessor-release lever to secure the microprocessor.
12. Install a heat sink on the microprocessor.
Chapter 2. Installing optional devices 95
