System-board internal connectors

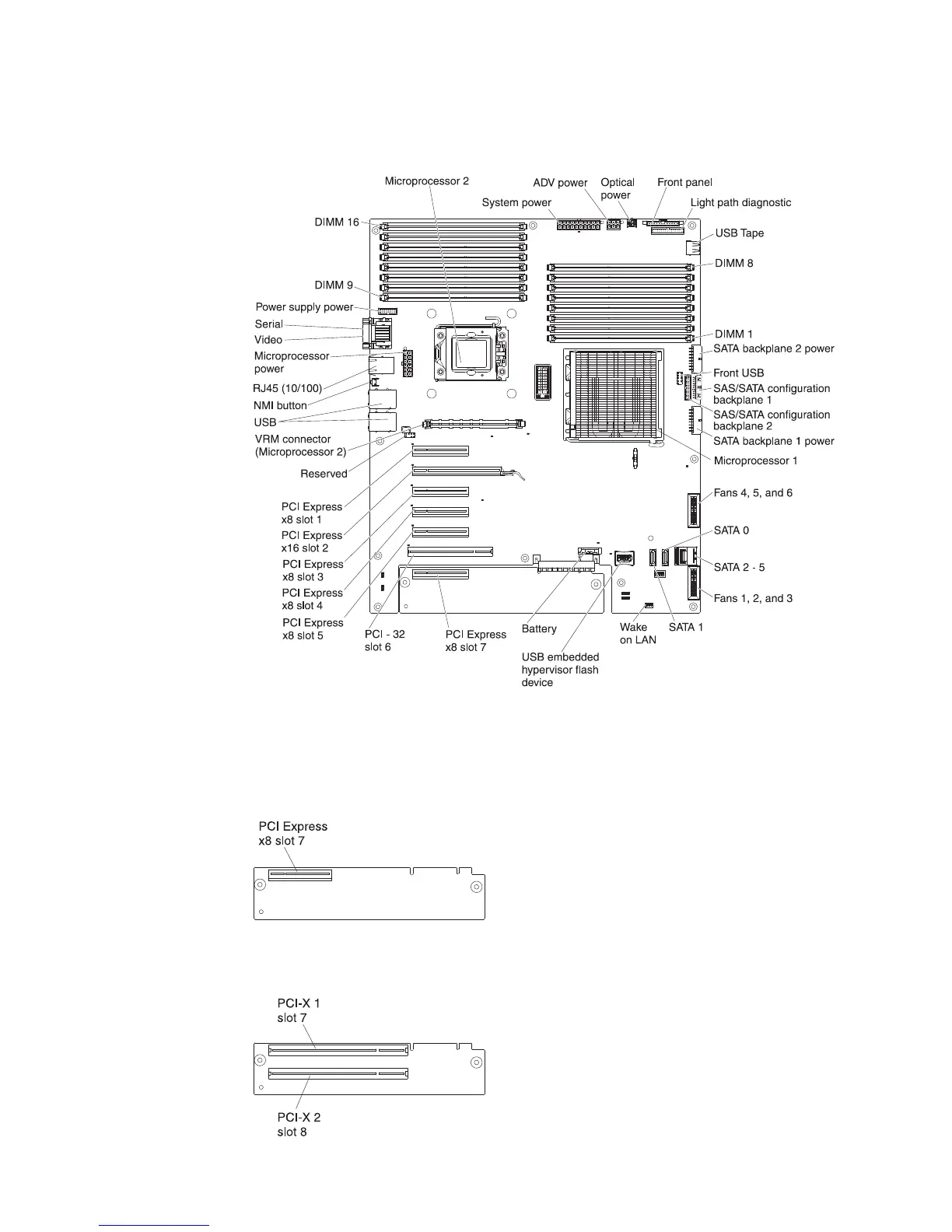

The following illustrations show the internal connectors and switches on the system
board.
The system board is equipped with a PCI extender card that provides one
additional expansion slot. The following illustration shows the additional PCI
Express expansion slot that is available on the PCI Express extender card.
Note: The PCI Express extender card comes standard in the System x3500 M2
server.
The following illustration shows two additional PCI-X expansion slots that are
available on the PCI-X extender card.
