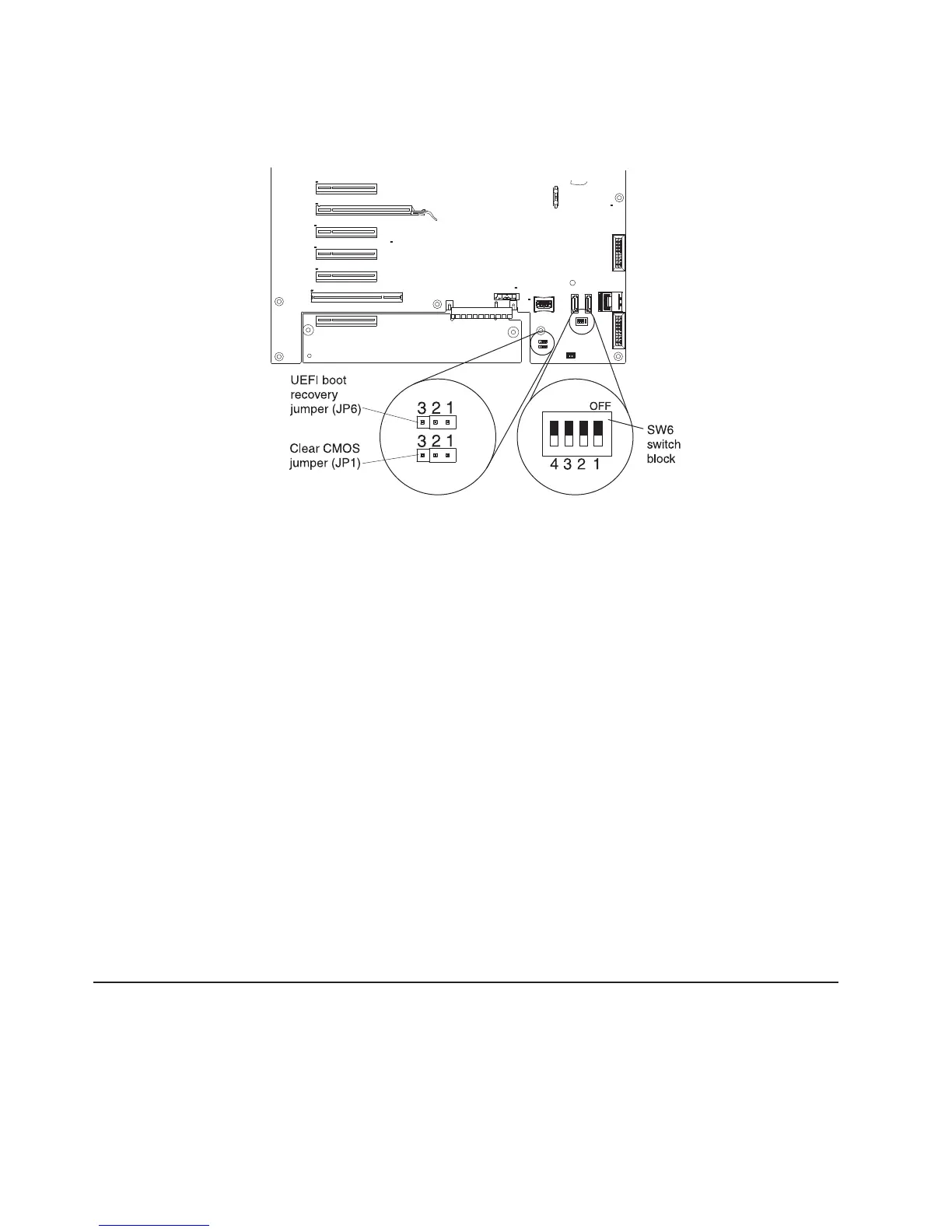

v Change the position of the power-on password switch (enable switch 2 of the
system board switch block (SW6)) to bypass the power-on password check (see
the following illustration).
Attention: Before you change any switch settings or moving any jumpers, turn
off the server; then, disconnect all power cords and external cables. See the
safety information that begins on page v. Do not change settings or move
jumpers on any system-board switch or jumper blocks that are not shown in this
document.
While the server is turned off, move switch 2 of the switch block (SW6) to the On
position to enable the power-on password override. You can then start the Setup
utility and reset the power-on password. You do not have to return the switch to
the previous position.
The power-on password override jumper does not affect the administrator
password.
Attention: If you set an administrator password and then forget it, there is no
way to change, override, or remove it. You must replace the system board.
Administrator password
An administrator password is intended to be used by a system administrator; it
limits access to the full Setup utility menu. If an administrator password is set, you
must type the administrator password for access to the full Setup utility menu. You
can use any combination of up to seven characters (A - Z,a-z,and0-9)forthe
password.
Attention: If you set an administrator password and then forget it, there is no way
to change, override, or remove it. You must replace the system board.
Using the Boot Selection Menu program
The Boot Selection Menu program is used to temporarily redefine the first startup
device without changing boot options or settings in the Setup utility.
To use the Boot Selection Menu program, complete the following steps:
1. Turn off the server.
2. Restart the server.
84 IBM System x3500 M2 Type 7839: Installation and User’s Guide
