IBM System x3500 M2 Type 7839 User Manual

Opening the bezel
Important: Before you install optional hardware, make sure that the server is
working correctly. Start the server, and make sure that the operating system starts,
if an operating system is installed, or that a 19990305 error code is displayed,
indicating that an operating system was not found but the server is otherwise
working correctly. If the server is not working correctly, see the Problem
Determination and Service Guide for diagnostic information.

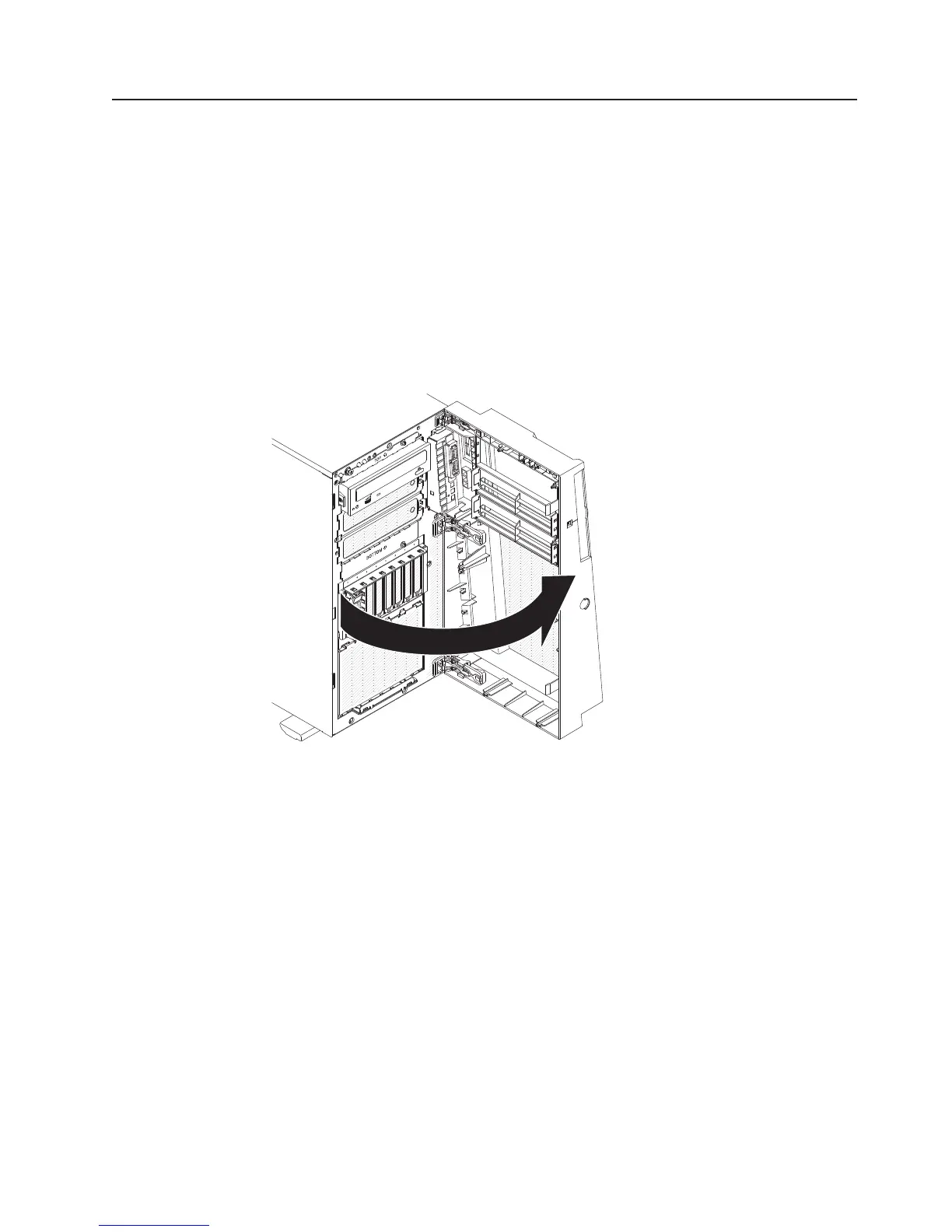

The following illustration shows how to open the bezel.
Notes:
1. The left-side cover does not have to be removed to open or remove the bezel.
2. The left-side cover lock must be unlocked to open or remove the bezel.
Complete the following steps to open the bezel:
1. Read the safety information that begins on page v and “Installation guidelines”
on page 35.
2. Using the supplied key, unlock the left-side cover and bezel.
3. Press on the left edge of the bezel, and rotate the left side of the bezel away
from the server.
Chapter 2. Installing optional devices 47

IBM System x3500 M2 Type 7839 Specifications

General

Memory	Up to 192 GB DDR3
Network Interface	Dual Gigabit Ethernet
Form Factor	Tower
Processor	Intel Xeon 5500 series
Drive Bays	Up to 8x 3.5" SAS/SATA or 16x 2.5" SAS/SATA
Power Supply	835W
Expansion Slots	6 PCI-Express slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
RAID Support	Integrated ServeRAID controller (various options available)
