IBM System x3500 M2 Type 7839 User Manual

Removing the air baffle
To remove the air baffle, complete the following steps:
1. Read the safety information that begins on page v and “Installation guidelines”
on page 35.
2. Turn off the server and all attached devices.
3. Disconnect all external cables and power cords.
4. Remove the left-side cover.
5. Remove the power supplies from the power-supply cage.
6. Unlatch the power-supply cage and rotate it out of the server until it locks.

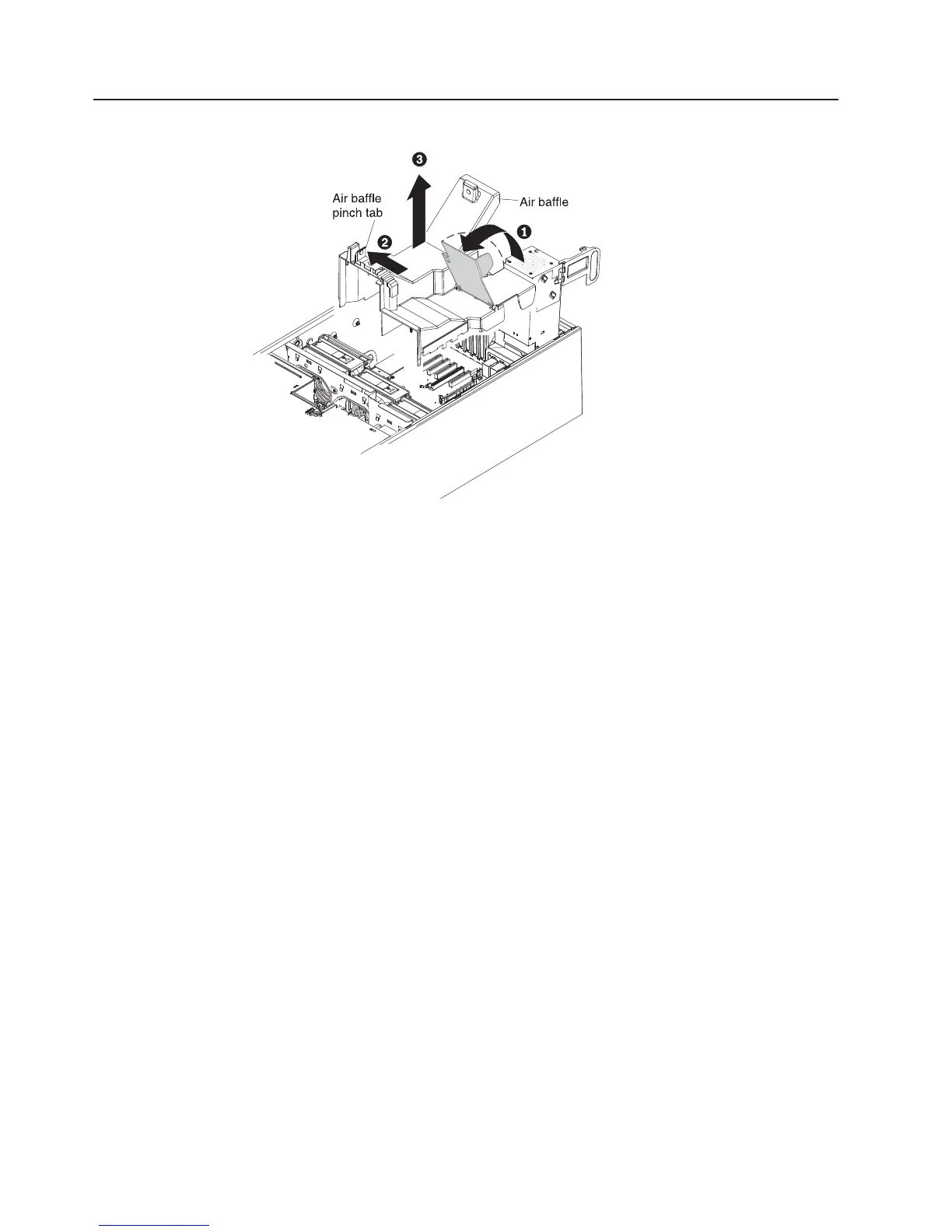

7. Rotate the rear of the air baffle up 1. Find the pinch tab on the air baffle,
pinch it together with your fingers 2, and lift the air baffle out of the server
3.
50 IBM System x3500 M2 Type 7839: Installation and User’s Guide

IBM System x3500 M2 Type 7839 Specifications

General

Memory	Up to 192 GB DDR3
Network Interface	Dual Gigabit Ethernet
Form Factor	Tower
Processor	Intel Xeon 5500 series
Drive Bays	Up to 8x 3.5" SAS/SATA or 16x 2.5" SAS/SATA
Power Supply	835W
Expansion Slots	6 PCI-Express slots
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
RAID Support	Integrated ServeRAID controller (various options available)
