Light path diagnostics panel

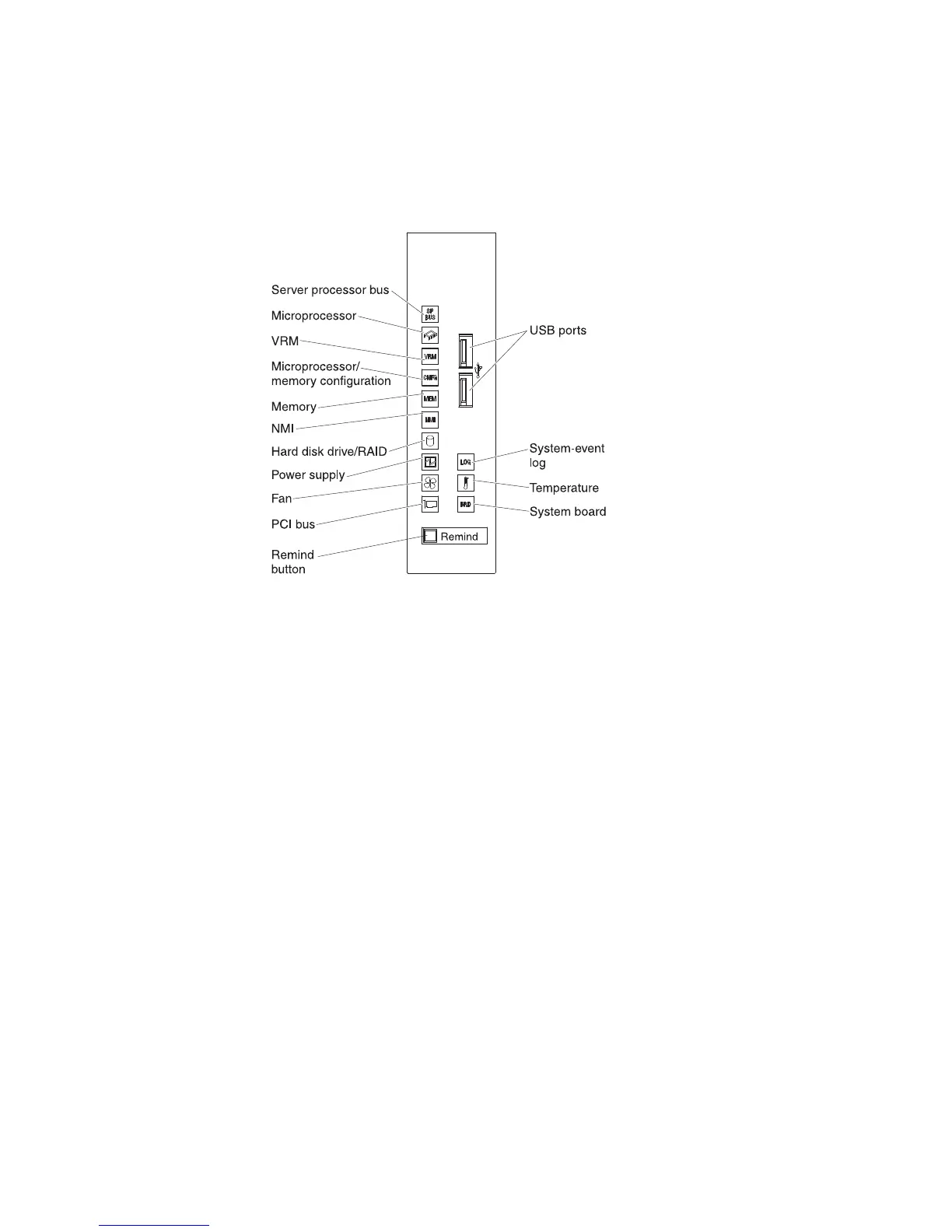

The following illustration shows the front LEDs on the light path diagnostics panel.
The light path diagnostics panel is inside the front bezel.
Note: The light path diagnostics LEDs remain lit only while the server is connected
to power.
For more information about the light path diagnostics LEDs, see the Problem
Determination and Service Guide on the IBM Documentation CD.
Chapter 1. The System x3500 M2 server 15
