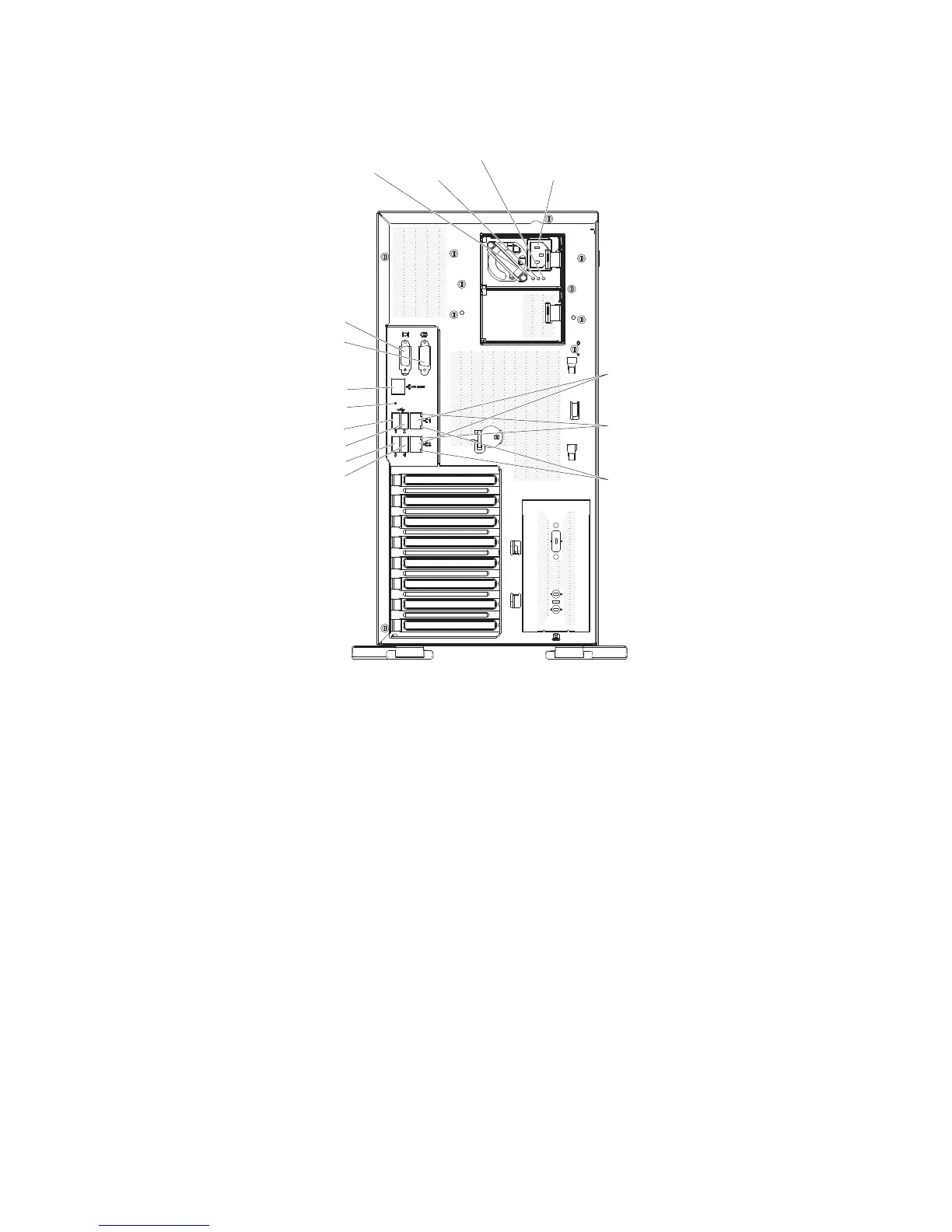

The following illustration shows the locations of the input and output connectors on
the rear of the server.
Video
Power cord
connector
Serial 1
(COM 1)
USB 4
USB 3
AC power LED
DC power LED
USB 2
USB 1
Systems
management
Ethernet 10/100/1000
Power error LED
NMI button
Ethernet
transmit/receive
activity LEDs
Ethernet link
status LEDs
Updating the server configuration
When you start the server for the first time after you add or remove a device, you
might receive a message that the configuration has changed. The Setup utility
starts automatically so that you can save the new configuration settings. For more
information, see Chapter 3, “Configuring the server,” on page 77.
Some optional devices have device drivers that you must install. For information
about installing device drivers, see the documentation that comes with each device.
The server comes with at least one microprocessor. If more than one
microprocessor is installed, the server can operate as a symmetric multiprocessing
(SMP) server. You might have to upgrade the operating system to support SMP. For
more information, see “Typical operating-system installation” on page 86 and the
operating-system documentation.
If the server has an optional RAID adapter and you have installed or removed a
hard disk drive, see the documentation that comes with the RAID adapter for
information about reconfiguring the disk arrays.
For information about configuring the integrated Gigabit Ethernet controller, see
“Configuring the Gigabit Ethernet controller” on page 90.
Chapter 2. Installing optional devices 75
