IBM TotalStorage DS8000

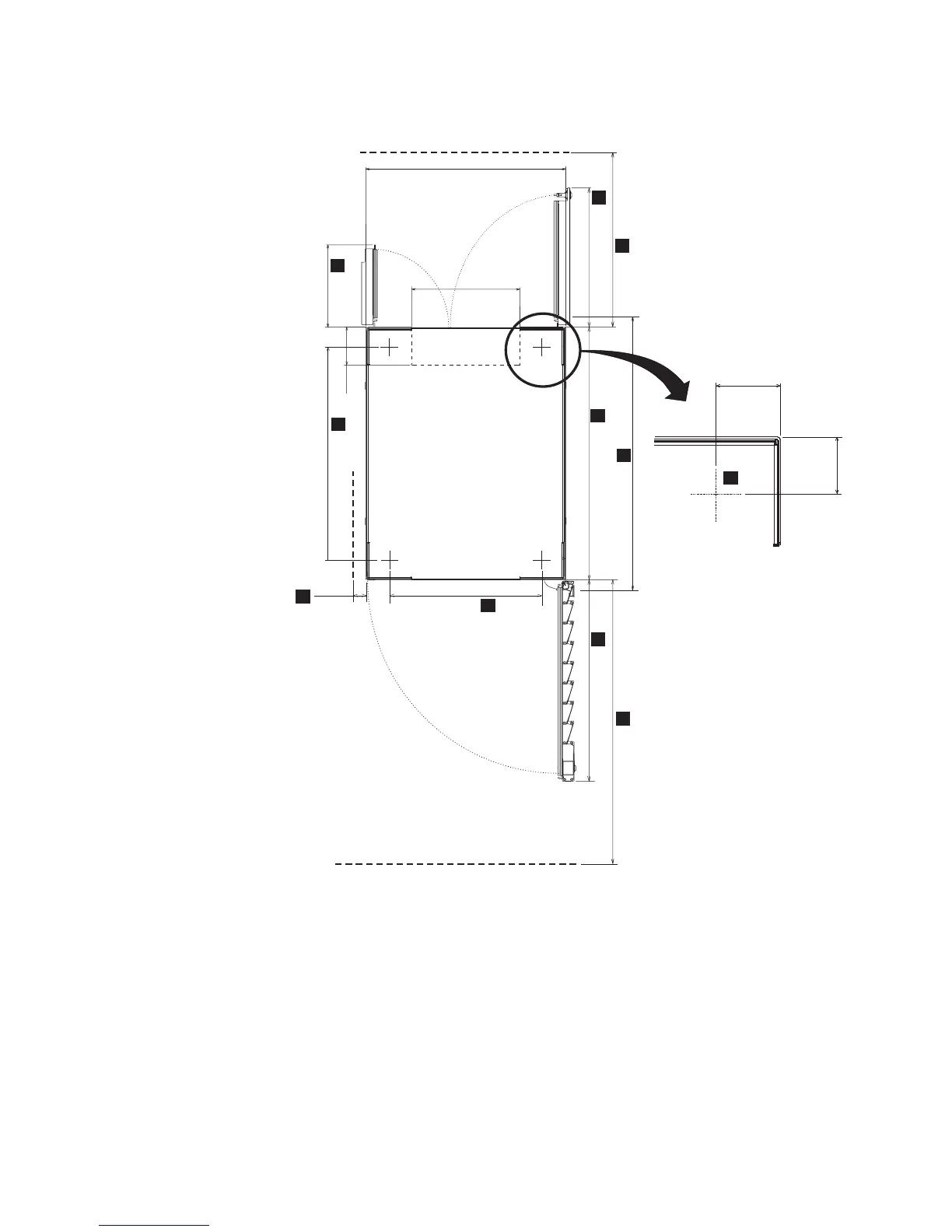

Figure 5 shows the overall physical footprint of a DS8000 unit.
The following dimensions are labeled on Figure 5:
1. Front cover width
2. Front service clearance
3. Back cover widths
4. Back service clearance
5. Clearance to allow front cover to open
6. Distance between casters
7. Depth of frame without covers
8. Depth of frame with covers
9. Minimum dimension between casters and outside edges of frames
84.7
(33.3)
64.5
(25.4)
5.1
(2.0)
58.9
(23.2)
76.2
(30.0)
45.7
(18.0)
34.8
(13.7)
16
(6.3)
90.0
(35.4)
Cable
Opening
85.3
(33.6)
106.7
(42.0)
118.3
(46.6)
121.9
(48.0)
1wnto5
8.55
(3.4)
9.37
(3.7)
7
8
9
6
5
5
1
2
3
3
4
(2x)
Figure 5. DS8000 physical footprint. Dimensions are in centimeters (inches).
Chapter 1. Introduction to IBM TotalStorage DS8000 series 7
