BIN REMOVAL - NEW MODELS
IU-0170 & IU-0220
1. Disconnect power.
2. Remove all ice from bin.
3. Remove air filter and louver from lower front of
machine.

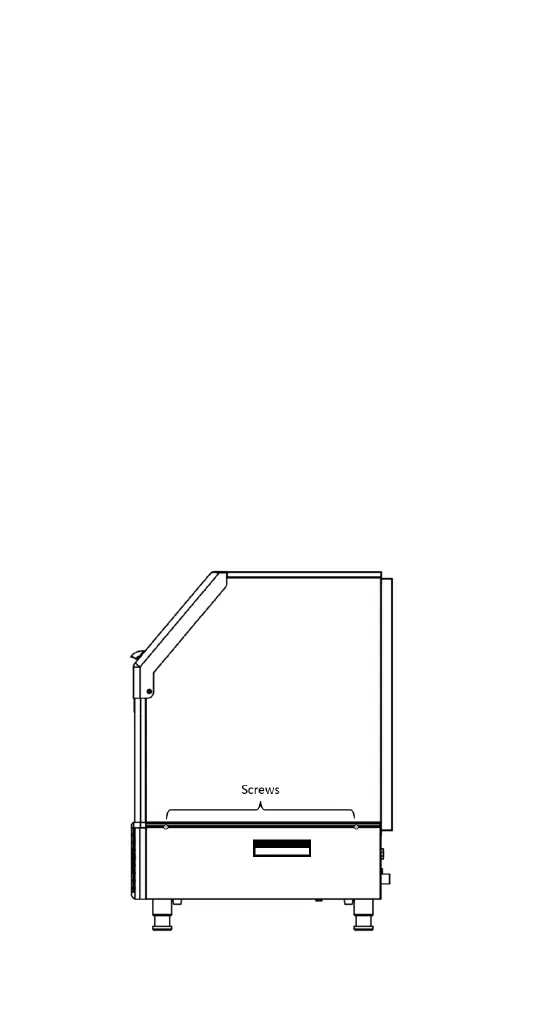

4. Remove screws from the left & right side of the
ice machine.
5. Disconnect clamp and remove bin drain.
6. Remove communication cable from control box.
7. Remove top cover.
8. Slide bin forward to remove.
NOTE: When reinstalling the bin, ensure the bin seal
is in place and is not pinched/folded as it mates to the
cabinet. A watertight seal is required to prevent future
condensation or water leakage from entering the ice
machine base.
39
