After selecting the program to run, click confirmation to pop up RUN PROGRAM window, as below:
Click Yes to run the program, click No to cancel.
 Program Running Status
.

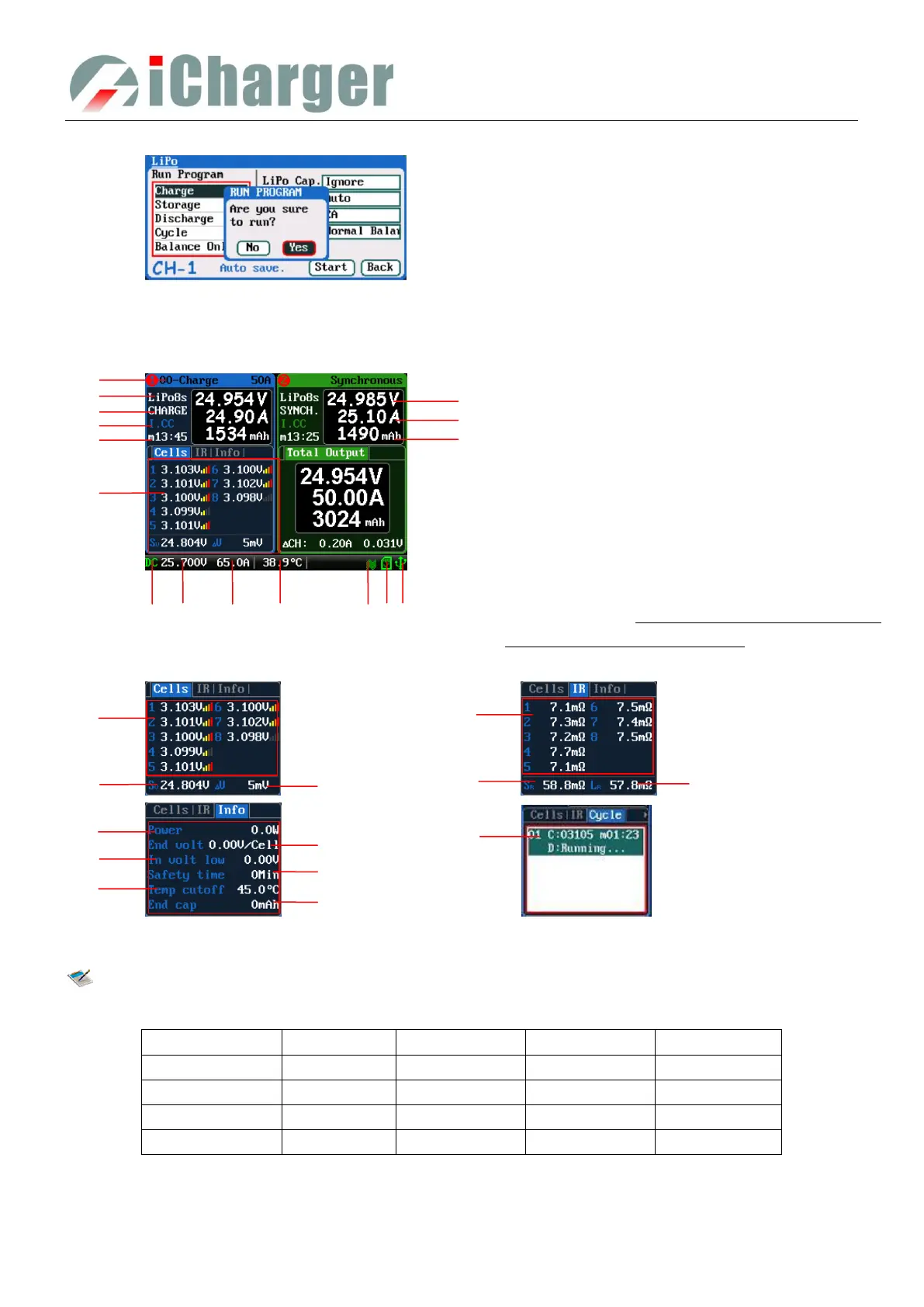

Press STATUS-x button when running program to switch the multipage information displays, as below:
Note: Different types of batteries and programs have different multipage information displays, see
details below:
Types of battery
Cells
IR
Info
Cycle
LiPo/LiIo/LiFe
√
√
√
√
NiMH/NiCd
×
×
√
√
Pb
×
×
√
√
NiZn
√
√
√
√
Cells voltage information
1: Cells voltage
2: Cells voltage sum
3: Maximum cells voltage
difference
IR information
1: Cells internal resistance
2: Pack internal resistance
3: Line resistance
Information page
1: Power
2: End voltage
3:Lowest input voltage
4: Safety time
5: Temp. cutoff
6: End charge capacity
Cycle charge information
1: Cycle charge status
1: Running program name 2: Battery type
3: Running channel status
4: Channel control status/external temperature
5: Running program time
6: Multipage information
7: Charging voltage 8: Charging current
9: Charging capacity 10: Input power source type
11: Input voltage 12: Input current
13: Internal temperature 14: Fan status
15: SD card status 16: USB status
See details on Page40 Status Indication of Running Channel
& Status Indication of Channel Control
3
2
1
4
6
7
8
9
10
11
12
13
14
15
16
5
1
2
3
2
4
5
3
6
1
1
2
1
3
