Specications
Input:
• Voltage: 18-30 VAC
Output:
• Maximum: 1 amp per terminal (3 amp total for all terminals)
Temperature Ranges:
• Temperature control range: 45°F to 90°F (7°C to 32°C) Accuracy: ± 1°F (± 0.5°C)
• Differential range: 1°F to 3°F (0.5°C to 1.5°C) Accuracy: ± 1°F (± 0.5°C)
• System configurations: Single stage heat pump
• Terminations: R, C, W, Y, B, O, G
• Note: This thermostat is designed for: Single stage
gas, oil, or electric heating, heating/cooling
systems and heat pump systems. It will retain
your setpoint temperatures in memory for up to
30 minutes during a power outage.

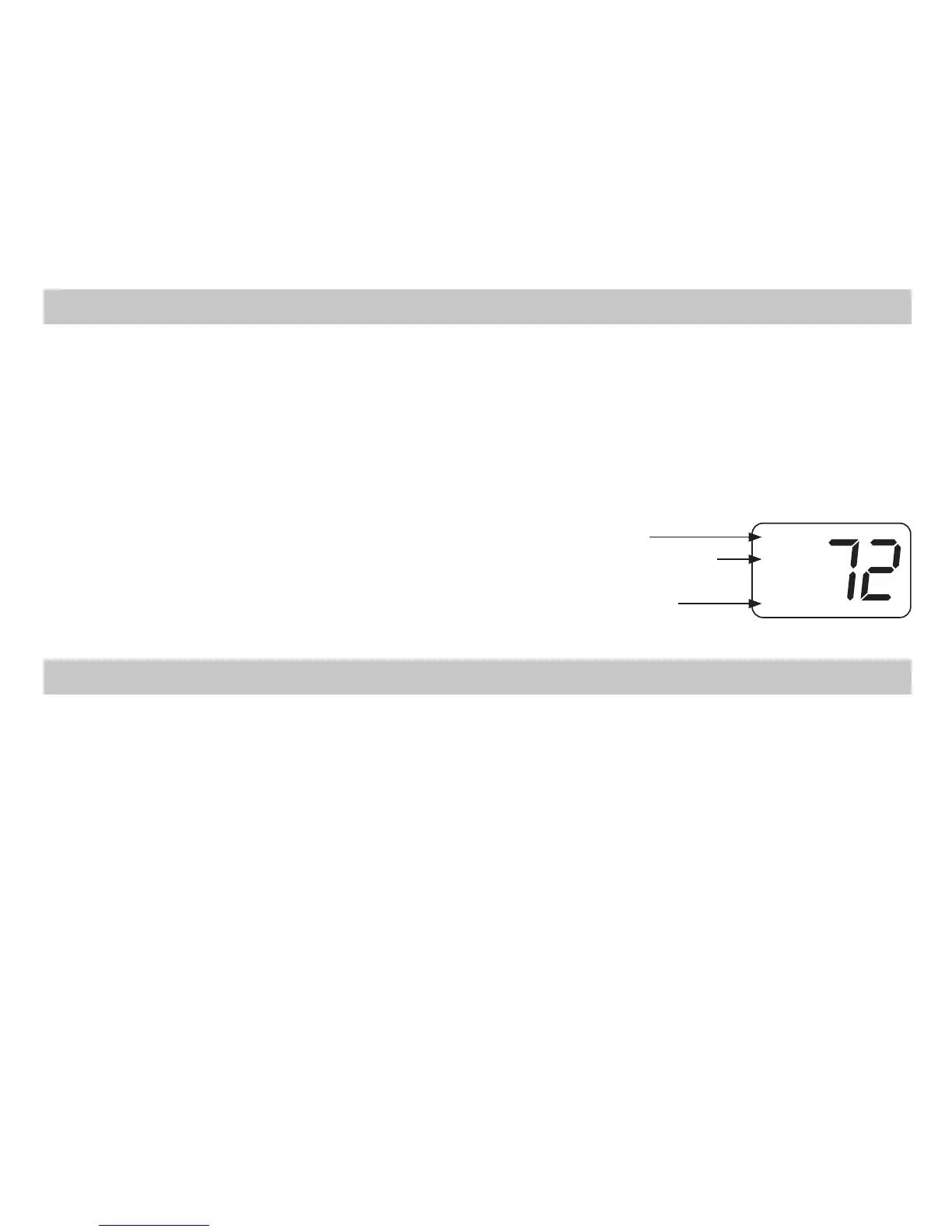

SET
ROOM
DIFF
Temperature
differential setting
Room temperature
Room temperature
setpoint
Important Safety Information
• Always turn off the thermostat before installing, removing, cleaning, or servicing; turn off the power at
the main power source by unscrewing fuse or switching off circuit breaker
• Do not switch to “Cool” if outside temperature is below 50
°
F (10
°
C), this could damage your A/C system
and cause injury
• Do not install on voltages higher than 30 VAC
• All wiring must conform to local and national building and electrical codes and ordinances
• While cleaning, do not get soap directly on thermostat switches or LCD readout; only use a damp cloth
with a mild soap to wipe the outside of the thermostat cover
To Next Page
